Remove/install radar sensor - AR30.30-P-1210LF
MODEL 217, 222
with CODE 233 (DISTRONIC PLUS)
MODEL 217, 222
with CODE 237 (Active Blind Spot Assist)
MODEL 217, 222
with CODE 238 (Active lane keeping Assist)
MODEL 217, 222
with CODE 258 (Collision Prevention Assist)
MODEL 217, 222
with CODE 266 (Steer Assist)
MODEL 217, 222
with CODE 268 (Brake Assist System Plus)
MODEL 217, 222
with CODE 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q)
MODEL 217, 222
with CODE 271 (Autonomous brake intervention/pedestrian protection)
MODEL 217, 222
with CODE 300 (Collision mitigation (PRE-SAFE® Brake))

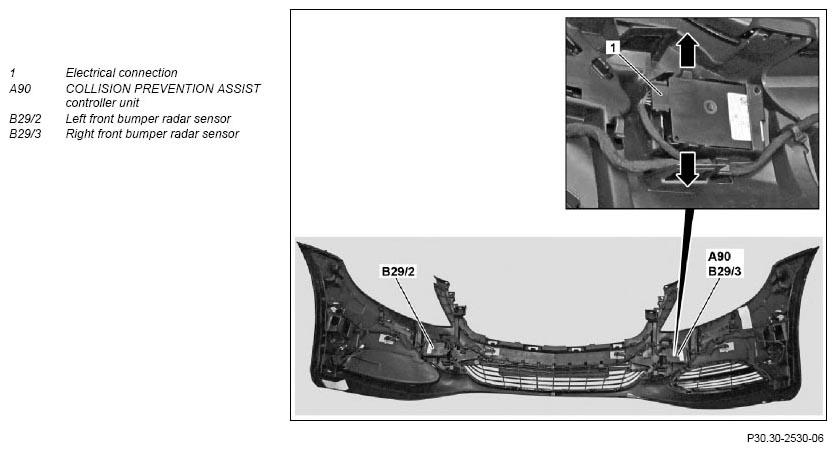

Shown on model 222
| Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove front bumper | MODEL 217 | AR88.20-P-2000LC |
| MODEL 222 | AR88.20-P-2000LF | ||
| 2 | Remove impact absorber | MODEL 217 | AR88.20-P-2050LC |
| MODEL 222 |
AR88.20-P-2050LF | ||
| 3.1 | Release and detach electrical connection (1) on bumper radar sensor at the front left (B29/2) or bumper radar sensor at the front right (B29/3) | Model 217, 222 except code 258 (Collision Prevention Assist) | |
| 3.2 | Release and detach electrical connection (1) on the COLLISION PREVENTION ASSIST (A90) controller unit | Model 217, 222 with code 258 (Collision Prevention Assist) | |
| 4.1 | Unlock retaining lugs (arrows) and bumper radar sensor at the front left (B29/2), or bumper radar sensor at the front right (B29/3) | Model 217, 222 except code 258 (Collision Prevention Assist) | |
| 4.2 | Unlock retaining lugs (arrows) and remove COLLISION PREVENTION ASSIST controller unit (A90) | Model 217, 222 with code 258 (Collision Prevention Assist) | |
| 5 | Install in the reverse order | ||
| 6 | Perform commissioning using the diagnostic system | ||
| AD00.00-P-2000-04B | |||
| 7 | Read out fault memory using the diagnostic system and delete | ||
| AD00.00-P-2000-04B |
