Remove/install rear panoramic glass roof - AR77.21-P-0600LF

MODEL 222

with CODE 398 (Panoramic roof with MAGIC SKY CONTROL)

MODEL 222

with CODE 413 (Automatic panoramic sliding sunroof)

10.05.2016	Disconnect/connect battery ground line, added	Operation step 4 and 38
12.05.2016	Unlock electrical connectors (28, 29) and disconnect or connect, added	Operation step 10 and 34
13.05.2016	"Mask connector on electrical connections (28, 29) with warning label or disconnect" added	Operation step 11 and 33

Shown on model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  caused by slipping when inserting blade in the multicutter and byglass splinters when cutting out bonded windows	Always interrupt air supply or power supply before inserting or removing blade. Wear protective gloves and safety glasses	AS67.00-Z-0001-01A
	Risk of death  caused by parts conducting high voltage	Do not touch parts conducting high voltages. Persons who wear electronic implants (e.g. cardiac pacemakers) must not  carry out any work on high-voltage on-board electrical systems. Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)	AS77.00-Z-0001-01A
	Risk of injury  from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows	Wear protective gloves and safety glasses.	AS67.00-Z-0004-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on MAGIC SKY CONTROL	Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)	AH77.00-P-0001-01A
	Notes on removal/installation of windows		AH67.10-P-1000-02RT
	Remove

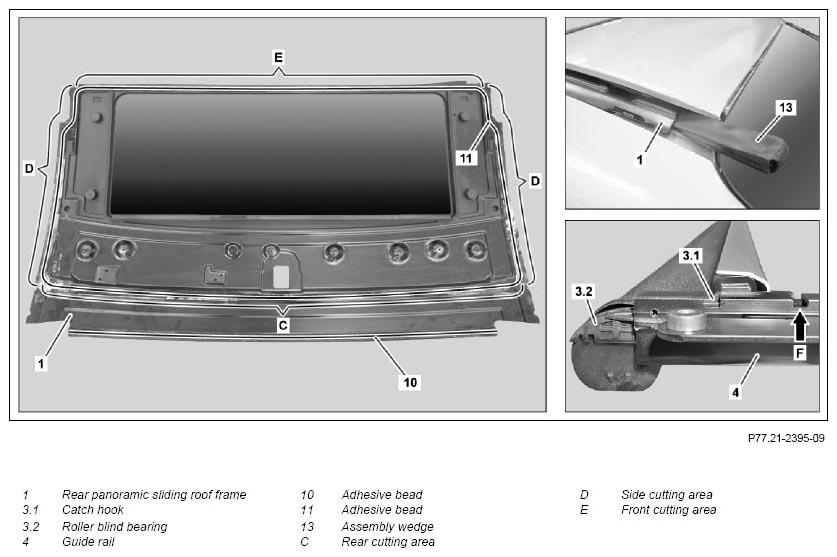

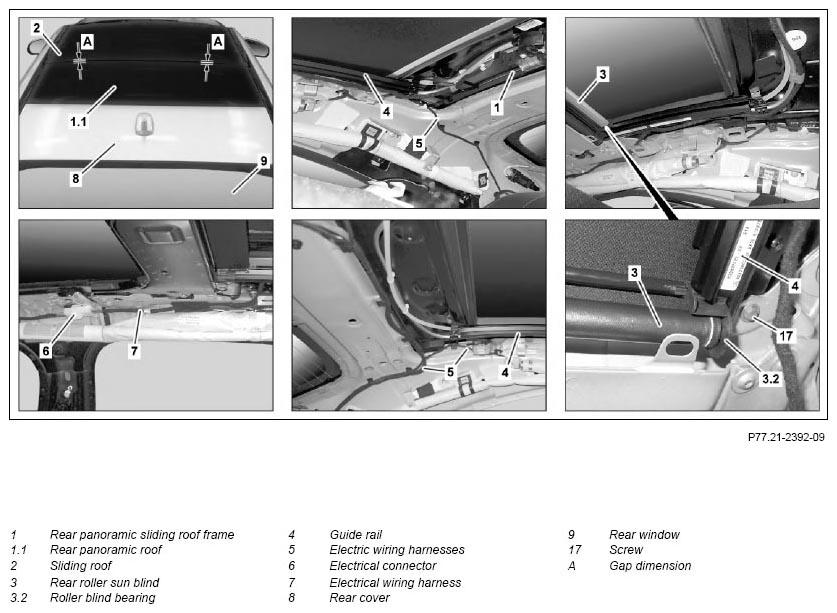

1	Determine gap dimension (A) between sliding roof (2) and rear panoramic roof (1.1) and note
2	Remove left and right drip rail		AR88.80-P-4000LF
3	Move sliding roof (2) to tilt position
4	Disconnect battery ground line	Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)	AR54.10-P-0003LF
5	Remove antenna		AR82.70-P-8951LF
6	Remove roller sun blind (3) at rear	Do not remove rear roller sun blind (3) from guide rails (4).	AR77.21-P-0201LF
7	Remove electrical wiring harnesses (5) from rear panoramic sliding roof frame (1)	Do not disconnect electrical connectors.
8	Release and disconnect electrical connection (6)
9	Remove electrical wiring harness (7) from right side roof frame

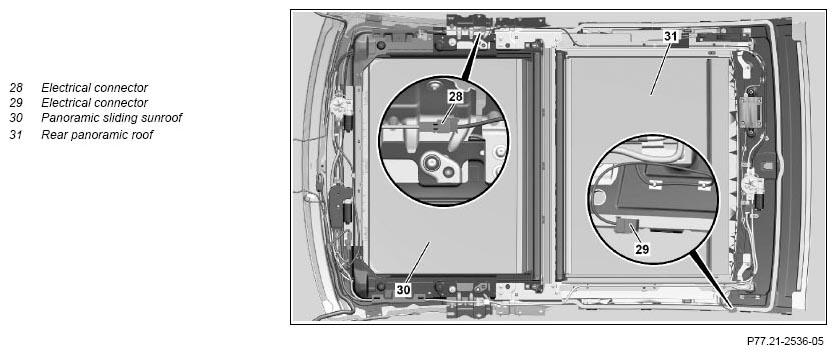

10	Release and disconnect electrical connectors (28, 29)	Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)
11	Mask connector on electrical connectors (28, 29) with warning label	Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Mask electrical connectors (28, 29) with warning label. Otherwise unintentional contact can occur.
		Warning label	Figure

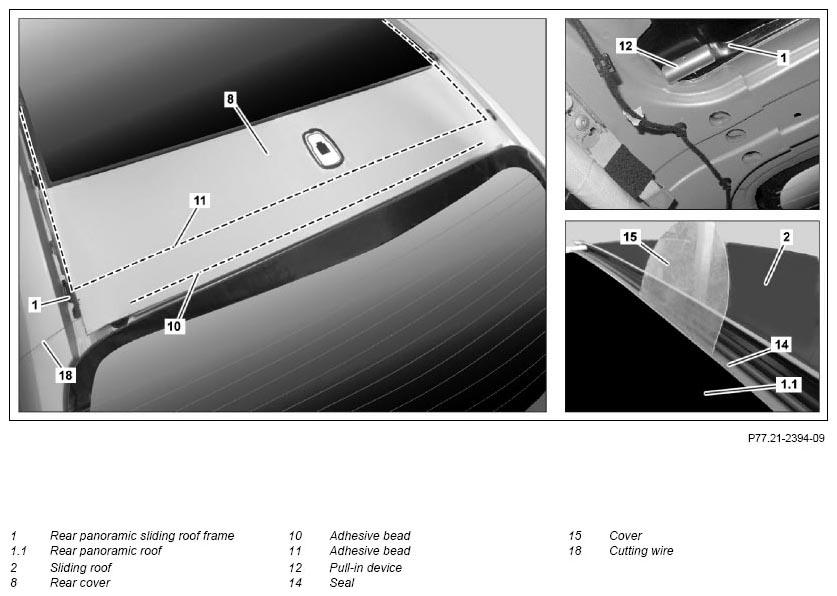

12	Saw off an approx. 1 cm wide strip on the rear edge of rear cover (8)	Saw carefully. Otherwise the upper seal on the rear window (9) can be damaged and the rear window (9) must be replaced. Observe cutting depth when sawing. Otherwise the paneling on the rear roof frame can be damaged. Use oscillating saw with round sawing blade. Commercially available devices/tools  Glass removal
13	Guide cutting wire (18) between both adhesive beads (10, 11) from one of the vehicle to the other	Commercially available devices/tools  Glass removal
14	Protect adjacent paint surfaces in cutting area with shields	Set of shields	Fig 7
15	Cut through adhesive bead (10) with cutting wire (18)	Commercially available devices/tools  Glass removal
16	Punch pull-in aid (12) as shown from rear right corner on rear panoramic sliding roof frame (1) through adhesive bead (11) from inside toward outside and guide cutting wire (18)	Commercially available devices/tools  Glass removal
17	Cut adhesive bead (11) in rear cutting area(±(C)with cutting wire (18)	Helper required. Commercially available devices/tools  Glass removal
18	Cut adhesive bead (11) in side cutting areas (D) with cutting wire (18) and lift rear panoramic sliding roof frame (1) with assembly wedge (13) while cutting.	Helper required. The adhesive gap between the rear panoramic sliding roof frame (1) and body flange is so small that the cutting wire (18) runs directly on the sheet metal flange which makes it difficult to cut. Commercially available devices/tools  Glass removal
		Mounting wedge	Figure
19	Mask seal (14) and sliding roof (2) with cover (15)
20	Cut adhesive bead (11) in front cutting area (E) with cutting wire (18)	Helper required. Commercially available devices/tools  Glass removal
21	Remove rear panoramic sliding roof frame (1) from body with aid of helper
	Install
22	Open driver door side window	The side window should remain open during the curing time. Otherwise the rear panoramic sliding roof frame (1) can be pressed toward outside by the air when a door is closed.
23	Completely close sliding roof (2) via emergency actuation
24	Move rear roller sun blind (3) to assembly position	Unlock catch hook (3.1) on left and right side of rear roller sun blind (3) by pressing in and push both roller bearings (3.2) into guide rails (4) toward rear until catch hooks (3.1) arrest in rear cutouts (arrow F).
25	Install rear roller sun blind (3) with guide rails (4) to new rear panoramic sliding roof frame (1)	Rear roller sun blind (3) remains in assembly position.	AR77.21-P-0201LF
26	Prepare rear panoramic sliding roof frame (1) for installation	Commercially available devices/tools  Cup suction tool/shackle (for removing and installing windows)	AR77.21-P-0800-02LF
		2-component adhesive repair kit, Betaforce 2850L	*BR00.45-Z-1154-02A
27	Prepare rear panoramic sliding roof frame body flange (1) for installation		AR77.21-P-0800-05LF
		2-component adhesive repair kit, Betaforce 2850L	*BR00.45-Z-1154-02A
28	Apply adhesive material for rear panoramic sliding roof frame (1)
	000 588 00 72 00 Sealing and corrosion protection gun		WS97.00-P-0001B
			AR77.21-P-0800-03LF
		2-component adhesive repair kit, Betaforce 2850L	*BR00.45-Z-1154-02A
29	Install rear panoramic sliding roof frame (1) on body and align determined gap dimension (A) and center	After gluing in rear panoramic sliding roof frame (1), do not move vehicle for min. 10 h. Otherwise the strength of the adhesive connection can be impaired and proper adhesion of the adhesive material is not ensured. Before adjusting gap dimensions (A), position sealing lip of seal (14) below sliding roof (2).
30	Tighten bolts (17) on left and right side of rear roller sun blind (3	The position of rear panoramic sliding roof frame (1) is not changed. Otherwise the gap dimension (A) and alignment between the side roof panelings changes.
31	Put large-surface weights on rear panoramic sliding roof frame (1) at rear	Use weights with large surfaces such as sandbags to put load on rear panoramic sliding roof frame (1). Otherwise the rear panoramic sliding roof frame (1) can be damaged.
32	Install new rear cover (8)		AR77.21-P-0751LF
33	Remove warning label from connector on electrical connectors (28, 29)	Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)
34	Connect electrical connectors (28, 29)	Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)
35	Install electrical wiring harness (7) on side roof frame
36	Connect electrical connection (6)
37	Install electrical wiring harnesses (5) in passenger compartment on rear panoramic sliding roof frame (1)
38	Connect ground cable to battery	Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)	AR54.10-P-0003LF
39	Move rear roller sun blind (3) from assembly position of end position	Push rear roller sun blind (3) at both roller bearings (3.2) into guide rails (4) toward front to stop. Both roller bearings (3.2) arrest in the guide rails (4).
40	Installing antenna		AR82.70-P-8951LF
41	Install left and right drip rail		AR88.80-P-4000LF

Number	Designation	Order number
BR00.45-Z-1154-02A	2-component adhesive repair kit, Betaforce 2850L	A 012 989 12 71
