Unfasten/fasten drip rail in area of windshield - AR88.80-P-4000LF

MODEL 217, 222

Shown on right drip rail (1) on MODEL 222

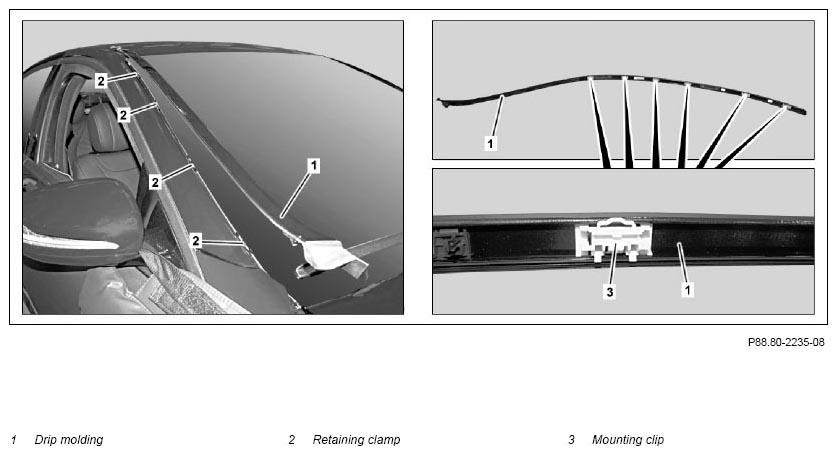

Fig 1: Drip Molding, Retaining Clamp And Mounting Clip - Shown On Right Drip Rail (1) On Model 222

Courtesy of MERCEDES-BENZ USA

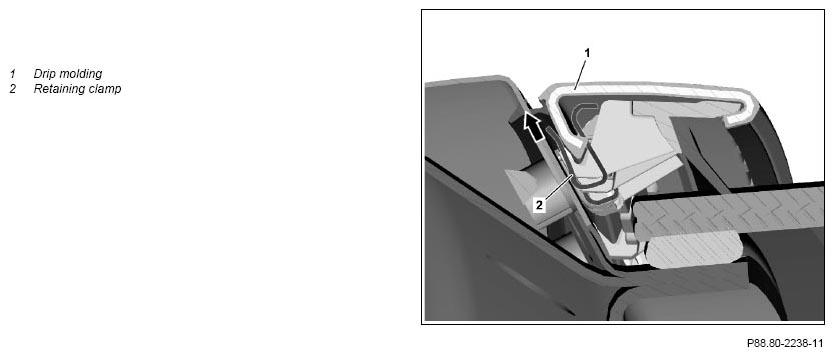

Fig 2: Drip Molding And Retaining Clamp

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open engine hood
2	Unclip drip rail (1) from retaining clips (2) on A-pillar starting at front with assembly wedge	Unclip drip rail (1) from retaining clips (2) by pulling in straight line (direction of arrow). Otherwise the mounts on the retaining clips (2) on the A-pillar can be damaged.
		Carefully unclip drip rail (1) from retaining clips (2). Otherwise the drip rail (1) can be deformed otherwise. Mounting wedge	Figure
3	Unclip drip rail (1) on retaining clips (3) from roof paneling with assembly wedge and remove	Carefully unclip drip rail (1) from retaining clips (3). Otherwise the drip rail (1) can be deformed otherwise. Check retaining clips (3) for damage. Mounting wedge	Figure
4	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
