Inner Upper A-Pillar Reinforcement Partially Removal And Installation - Ar63.20-S-1111E
Model 447, 448

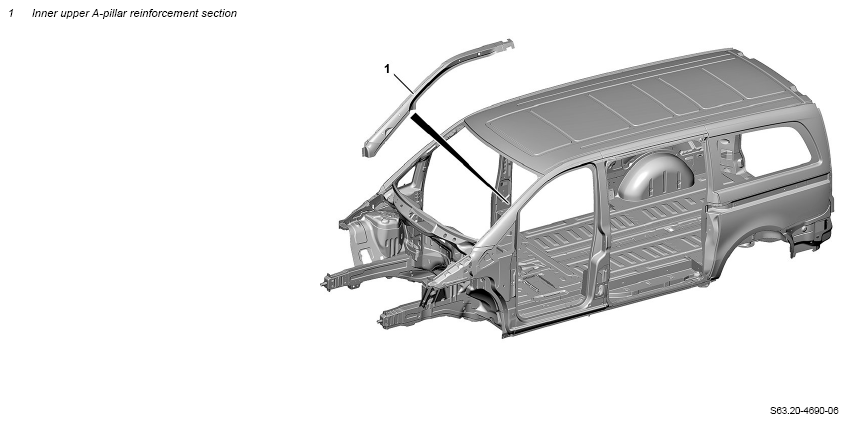

Shown on left side of vehicle
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Model 447 with engine 780 |
AS00.00-Z-0035-01A | |
| Risk of poisoning caused by inhaling vapors or swallowing adhesive. Risk of injury caused by adhesive coming into contact with skin and eyes | Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. | AS00.00-Z-0016-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| Notice | Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | |
| General information on riveting | AH60.00-P-0003-01N | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area of repair point. | ||
| 2 | Cover all detachable parts remaining in vehicle with welding protection blankets. | ||
| 3 | Remove soundproofing. | AR60.00-S-1752E | |
| 4 | Remove outer paneling at upper A-pillar. | AR63.20-S-1105E | |
| 5 | Cut off inner upper A-pillar reinforcement section (1). | AR63.20-S-1111-01E | |
| 000 588 15 84 00 Heat gun | Hand drill Spot weld milling machine Rotary wire brush Wet and dry vacuum cleaner |
WS54.00-P-0125B | |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 6 | Prepare inner upper A-pillar reinforcement section (1) for installation. | AR63.20-S-1111-02E | |
| 000 588 13 84 00 Welder | Clamping pliers (Standard) Rotary wire brush Wet and dry vacuum cleaner |
WS60.00-P-0437K | |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Install | |||
| 7 | Install and weld in inner upper A-pillar reinforcement section (1). | AR63.20-S-1111-03E | |
| 000 588 12 84 00 Welder | WS00.00-P-0318K | ||
| 000 588 13 84 00 Welder | Hand drill Blind riveting tool (set force > 19 kN) Wet and dry vacuum cleaner Squeeze gun Rotary wire brush |
WS60.00-P-0437K | |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Seam seal 300 ml in black or white | *BR00.45-Z-1003-01A | ||
| Adhesive kit, body, 2-component adhesive | *BR00.45-Z-1092-02A | ||
| Blind rivet with polygrip countersunk head 6.4x14 (clamping range 2 mm to 8.5 mm, draw-off strength min. 10.8 kN) | *BR00.45-Z-1002-13A | ||
| 8 | Install outer paneling at upper A-pillar. | AR63.20-S-1105E | |
| 9 | Install detachable parts in the area of the repair point. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1002-13A | Blind rivet with polygrip countersunk head 6.4x14 (clamping range 2 mm to 8.5 mm, draw-off strength min. 10.8 kN) | A 003 990 86 97 05 |
| BR00.45-Z-1003-01A | Seam seal 300 ml in black or white | A 005 989 63 20 |
| BR00.45-Z-1092-02A | Adhesive kit, body, 2-component adhesive | A 012 989 17 71 |
