Remove, Install Soundproofing - Ar60.00-S-1752E

Model 447, 448

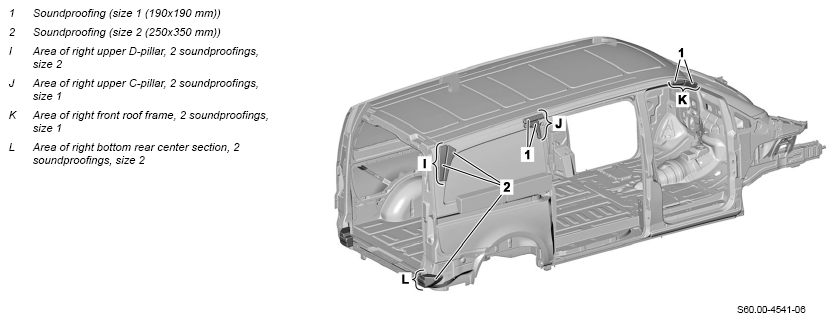

Shown on model 447.6 without code T19 (Left sliding door) without code D50 (Full-width partition wall) or code D51 (Full-width partition wall with 1 window)

Courtesy of MERCEDES-BENZ USA

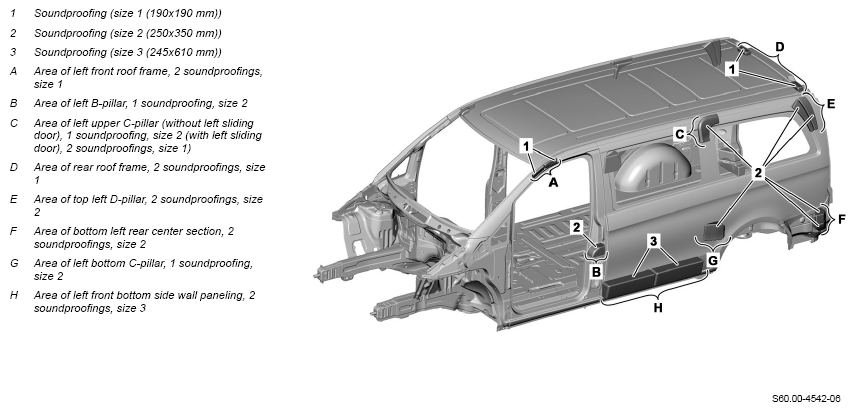

Shown on model 447.6 without code T19 (Left sliding door) without code D50 (Full-width partition wall) or code D51 (Full-width partition wall with 1 window)

Courtesy of MERCEDES-BENZ USA

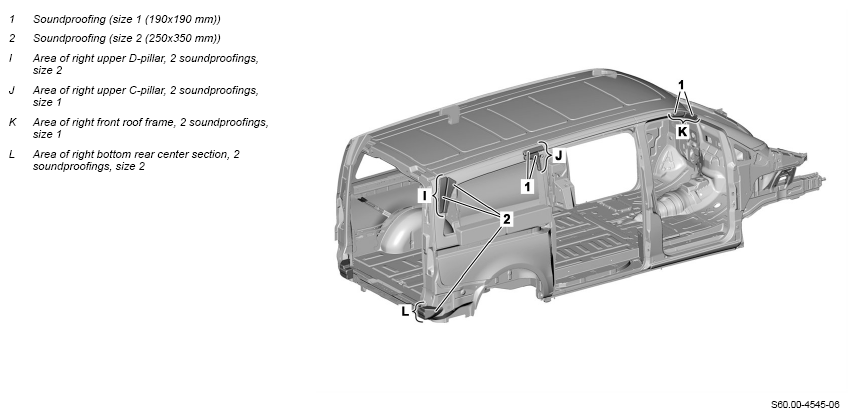

Shown on model 447.8 without code T19 (left sliding door)

Courtesy of MERCEDES-BENZ USA

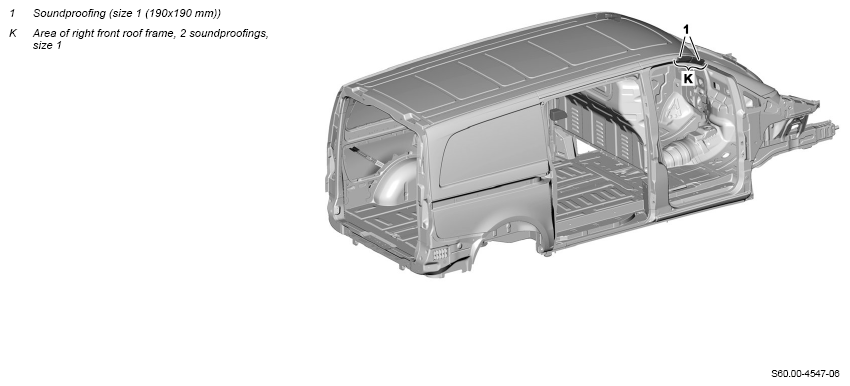

Shown on model 447.8 without code T19 (left sliding door)

Courtesy of MERCEDES-BENZ USA

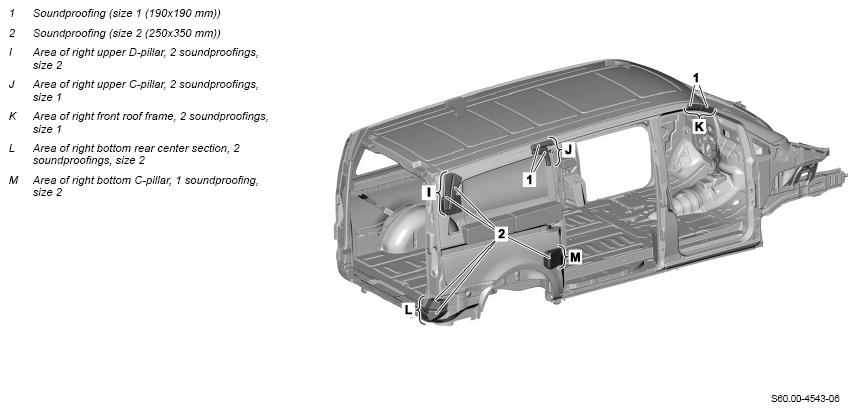

Shown on model 447.7 without code T19 (left sliding door)

Courtesy of MERCEDES-BENZ USA

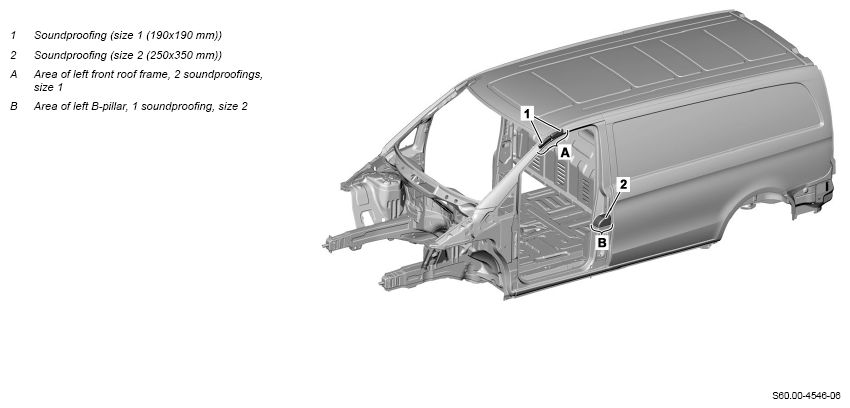

Shown on model 447.7 without code T19 (left sliding door)

Courtesy of MERCEDES-BENZ USA

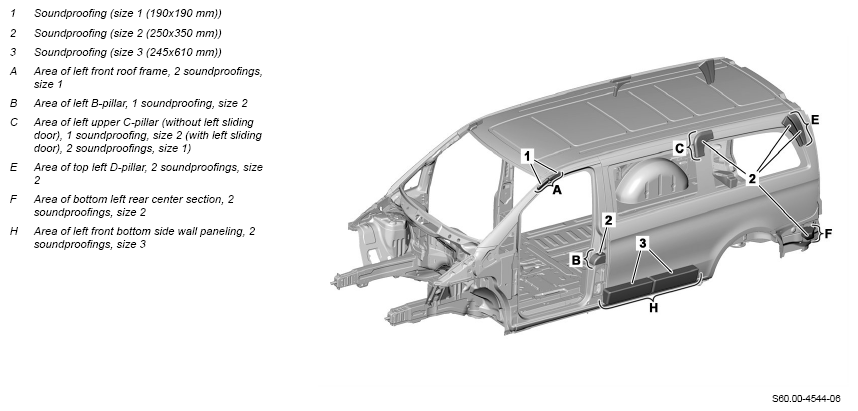

Shown on model 447.6 without code T19 (Left sliding door), with code D50 (Full-width partition wall) or code D51 (Full-width partition wall with 1 window)

Courtesy of MERCEDES-BENZ USA

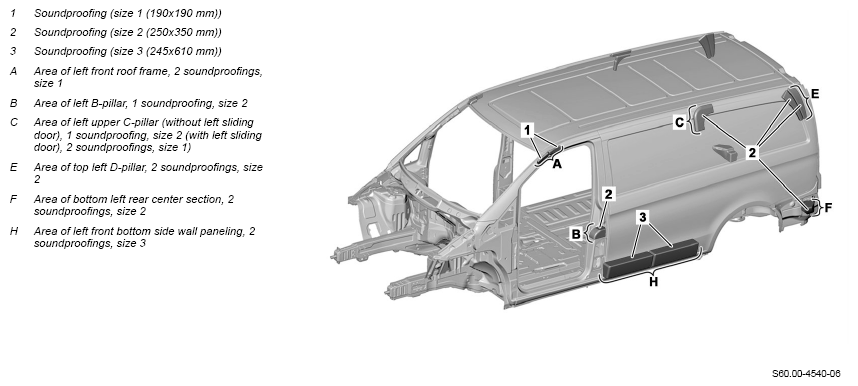

Shown on model 447.6 without code T19 (Left sliding door), with code D50 (Full-width partition wall) or code D51 (Full-width partition wall with 1 window)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove soundproofings (1, 2, 3) from corresponding repair area	The corresponding repair area must be accessible. If access is difficult ↓ Remove detachable parts in the repair area
	Install
2	Install soundproofings (1, 2, 3)	Always replace damaged soundproofings (1, 2, 3). Otherwise noises can occur while driving. To install punch small bleed hole into corresponding soundproofing (1, 2, 3), press soundproofing (1, 2, 3) together and install in corresponding repair area.
3	Install detachable parts	Only if detachable parts have been removed for better accessibility.
