Remove/Install Wind Deflector On Sliding Roof In Pop-Up Roof - AR77.20-S-0007E

Model 447.7/8

With Code D27 (Electric tilting/sliding glass sunroof)

With Code ZK9 (Lifting roof hatch)

Model 447.8

With Code D27 (Electric tilting/sliding glass sunroof)

With Code ZK0 (EASY UP pop-up roof, electric)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install

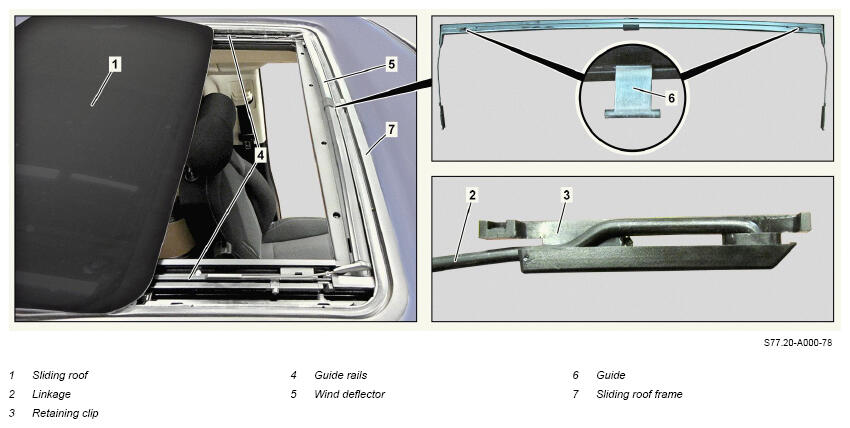

1	Completely open sliding roof (1).
2	Switch off ignition.
3	Remove the auxiliary battery ground line.	Model 447 with code E28 (additional battery for retrofit consumer) Model 447 with code EE8 (battery 12V 100 Ah)	AR54.10-S-0007E
4	Remove the linkage (2).	Align retaining clips (3) as shown. Otherwise, correct installation of the retaining clips (3) on the guide rails (4) cannot be guaranteed. Detach the retaining clips (3) of the linkage (2) from the guide rails (4) for this.
5	Remove wind deflector (5).	Remove the wind deflector (5) with guides (6) from the sliding frame (7) upwards for this.
6	Install in the reverse order.
	Check
7	Perform function check of the wind deflector (5).	Open and close the sliding roof panel (1) for this.
