Remove/Install Sliding Sunroof Frame On Sliding Roof In Pop-Up Roof - AR77.20-S-0008E

Model 447.7/8

With Code D27 (Electric tilting/sliding glass sunroof)

With Code ZK9 (Lifting roof hatch)

Model 447.8

With Code D27 (Electric tilting/sliding glass sunroof)

With Code ZK0 (EASY UP pop-up roof, electric)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install

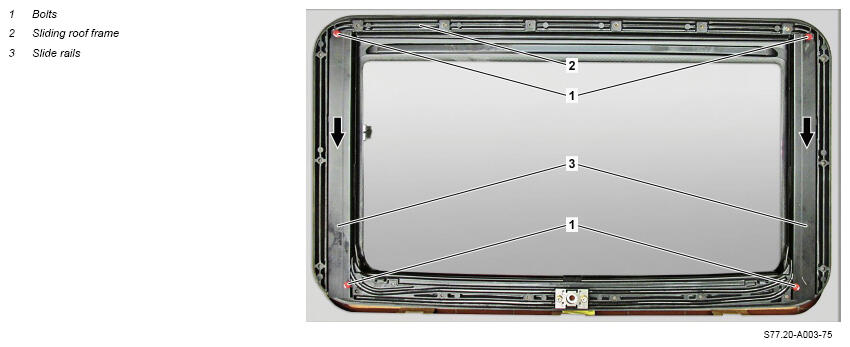

1	Remove pilot bushings on sliding sunroof frame (2).		AR77.20-S-0009E
2	Remove screws (1).
3	Align slide rails (3) with the sliding sunroof frame (2).	Move each slide rail (3) in steps until it can be guided past its associated catch (4). If this is not observed, the sliding sunroof frame (2) will be damaged.

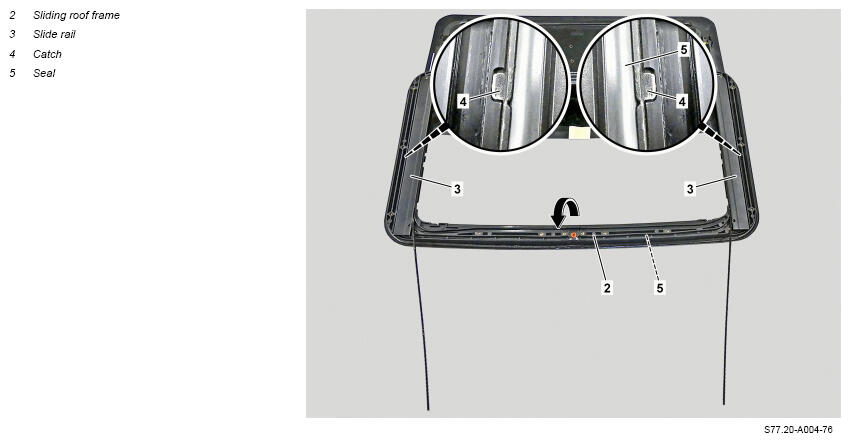

4	Remove sliding sunroof frame (2).	Swivel the sliding sunroof frame (2) downwards to the slide rails (3). If this is not observed, the catches (4) will be damaged. i236 : Check catches (4) for damage. If damage is present: ↓ replace the sliding sunroof frame (2).
	Clean
5	Remove seal residues and clean contact surfaces at sliding sunroof frame (2) and at pop-up roof.	Isopropyl alcohol STRESOL 99	*BR00.45-Z-1057-04A
6	Attach seal to sliding sunroof frame (2).	Sliding roof sealing profile on pop-up roof, Terostat 81 black 10x2 mm	*BR00.45-Z-1146-01A
7	Install in the reverse order.
	Check
8	Check the sliding sunroof frame (2) for leaks.	Visual inspection only.
