Carry Out Distance And Comparison Measurements On Front And Rear Axles - AR40.30-P-0402GZ

MODEL 164, 166, 251, 292

Front axle, shown on model 164.1

Rear axle, shown on model 164.1

	Measure
1	Perform preparations for distance and comparative measurements	Model 164, 251	AR40.30-P-0401GZ
		Model 166, 292	AR40.30-P-0401GQ
2.1	Perform distance measurement at front axle	In the case of front end damage.

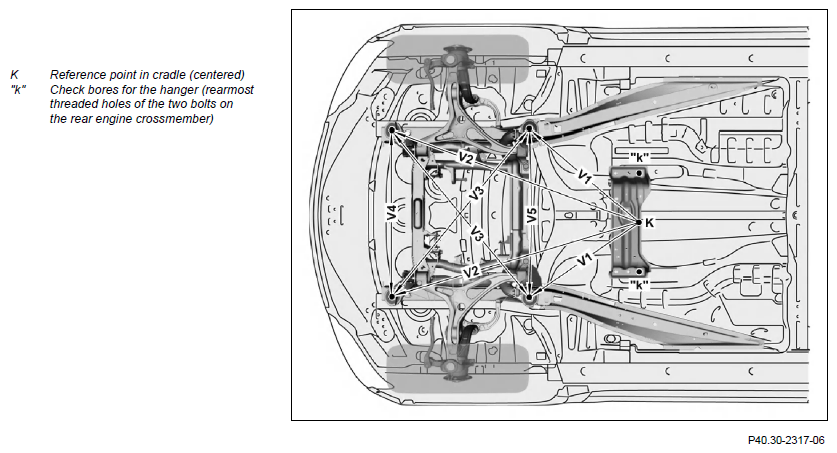

		Model 164, 166, 292	AR40.30-P-0402-01GZ
		Model 251 Depending on the accident damage, further individual measuring points for a comparative measurement can be individually defined in addition to the check point in the suspension (centered) (K) and the check bores for the suspension (rearmost threaded holes of the two bolts on the rear engine crossmember) ("k").	AR40.30-P-0402-01RT
		Dimension	*BE40.30-P-1001-06I
		Mount	Figure
		Retaining tube	Figure
		Telescopic measuring rod	Figure
		Telescopic measuring rod	Figure
		Connecting pieces	Figure
		Measuring set	Figure

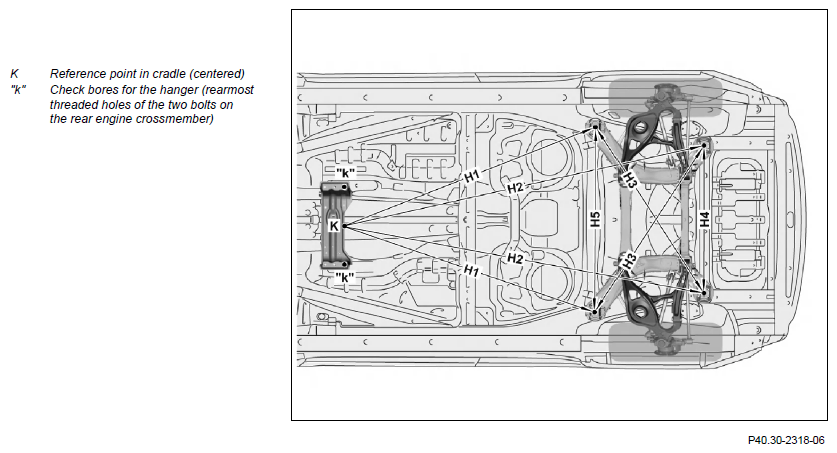

2.2	Perform distance measurement at rear axle	In the case of rear end damage. Depending on the accident damage, further individual measuring points for a comparative measurement can be individually defined in addition to the check point in the suspension (centered) (K) and the check bores for the suspension (rearmost threaded holes of the two bolts on the rear engine crossmember) ("k").	AR40.30-P-0402-02GZ
		Dimension	*BE40.30-P-1001-05H
		Mount	Figure
		Retaining tube	Figure
		Telescopic measuring rod	Figure
		Connecting pieces	Figure
		Measuring set	Figure

CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT ON REAR AXLE

Number	Designation			Model 166.8	Model 164.1
BE40.30-P-1001-05H	Dimension	H1	mm	1771 (± 2)	1621 (± 2)
		H2	mm	2413 (± 2)	2257 (± 2)
		H3	mm	1271 (± 2)	1271 (± 2)
		H4	mm	962 (± 2)	962 (± 2)
		H5	mm	1168 (± 2)	1168 (± 2)
		For picture, see		AR40.30-P-0402-02GZ	AR40.30-P-0402-02GZ

CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT ON REAR AXLE

Number	Designation			Model 164.8	Model 166.0
BE40.30-P-1001-05H	Dimension	H1	mm	1771 (± 2)	1621 (± 2)
		H2	mm	2413 (± 2)	2257 (± 2)
		H3	mm	1271 (± 2)	1271 (± 2)
		H4	mm	962 (± 2)	962 (± 2)
		H5	mm	1168 (± 2)	1168 (± 2)
		For picture, see		AR40.30-P-0402-02GZ	AR40.30-P-0402-02GZ

CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT ON REAR AXLE

Number	Designation			Model 251.0	Model 251.1
BE40.30-P-1001-05H	Dimension	H1	mm	1673 (± 2)	1895 (± 2)
		H2	mm	2313 (± 2)	2542 (± 2)
		H3	mm	1307 (± 2)	1307 (± 2)
		H4	mm	1060 (± 2)	1060 (± 2)
		H5	mm	1168 (± 2)	1168 (± 2)
		For picture, see		AR40.30-P-0402-02GZ	AR40.30-P-0402-02GZ

CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT ON REAR AXLE

CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT ON FRONT AXLE

Number	Designation			Model 164	Model 166
BE40.30-P-1001-06I	Dimension	V1	mm	723 (± 2)	723 (± 2)
		V2	mm	1381 (± 2)	1381 (± 2)
		V3	mm	1136 (± 2)	1136 (± 2)
		V4	mm	876 (± 2)	876 (± 2)
		V5	mm	866 (± 2)	866 (± 2)
		For picture, see		AR40.30-P-0402-01GZ	AR40.30-P-0402-01GZ

CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT ON FRONT AXLE

Number	Designation			Model 251	Model 292
BE40.30-P-1001-06I	Dimension	V1	mm	722 (± 2)	723 (± 2)
		V2	mm	1381 (± 2)	1381 (± 2)
		V3	mm	1136 (± 2)	1136 (± 2)
		V4	mm	876 (± 2)	876 (± 2)
		V5	mm	866 (± 2)	866 (± 2)
		For picture, see		AR40.30-P-0402-01RT	AR40.30-P-0402-01GZ

Fig 1: Identifying Retaining Tube (164 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Measuring Set (168 589 07 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Connecting Pieces (124 589 08 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Courtesy of MERCEDES-BENZ USA
