Fuse And Relay Box, As-Built Configuration - GF54.15-P-0800GN
MODEL 166 as of model year 2016
MODEL 292

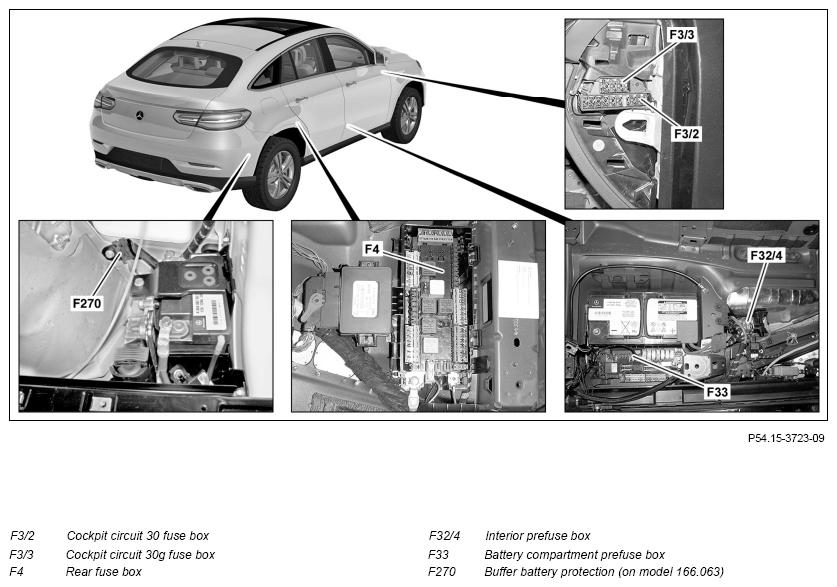

Shows model 166.0
Shown on model 292
The rear fuse box is located under the right rear seat and under the left rear seat.
ATO and maxi fuses may only be replaced by fuses that meet the Mercedes-Benz standard: MBN10153-2. ATO and MAXI fuses are installed in the engine compartment fuse and relay module, in the rear fuse box, and in the interior prefuse box.

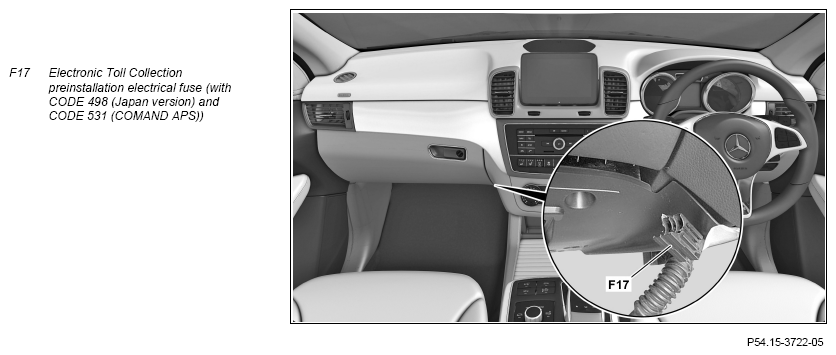

Shown on right-hand drive vehicle
The Electronic Toll Collection preinstallation electrical fuse is inserted in the Japanese "vehicle preparation center".
Shown on model 292

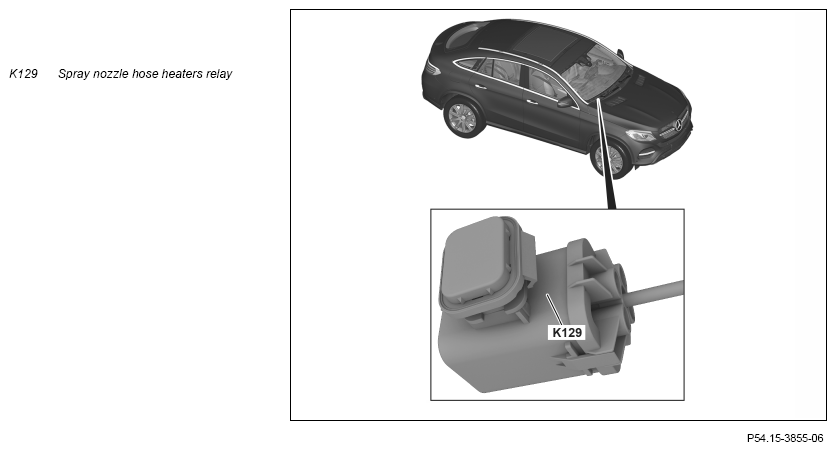

The spray nozzle hose heater relay is located at the right in front of the windshield below the water drain.
| Fuse assignment in cockpit fuse box | F3/2, F3/3 | GF54.15-P-1256-22GN | |
| Assignment of rear fuse and relay module | F4 | GF54.15-P-1256-30GN | |

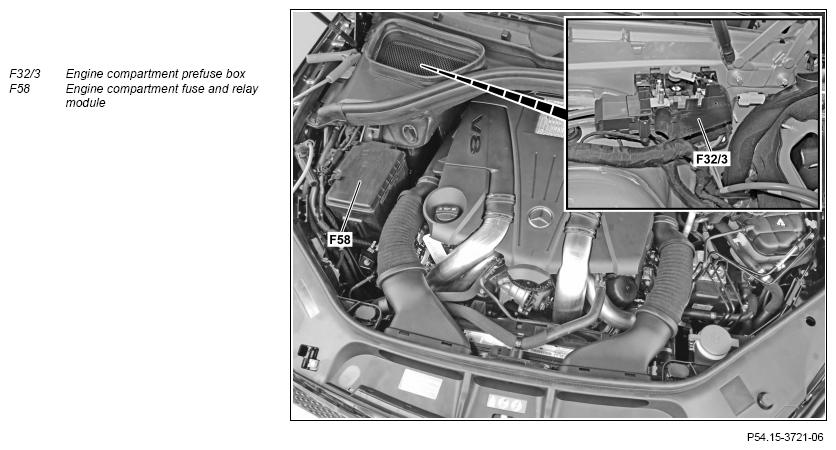

| Fuse assignment of prefuse box in engine compartment | F32/3 | GF54.15-P-1256-25GN | |
| Fuse assignment of fuse box in interior compartment on passenger's side | F32/4 | GF54.15-P-1256-11GN | |
| Fuse assignment of battery compartment prefuse box | F33 | GF54.15-P-1256-15GN | |
| Assignment of engine compartment fuse and relay module | F58 | GF54.15-P-1256-36GN |
