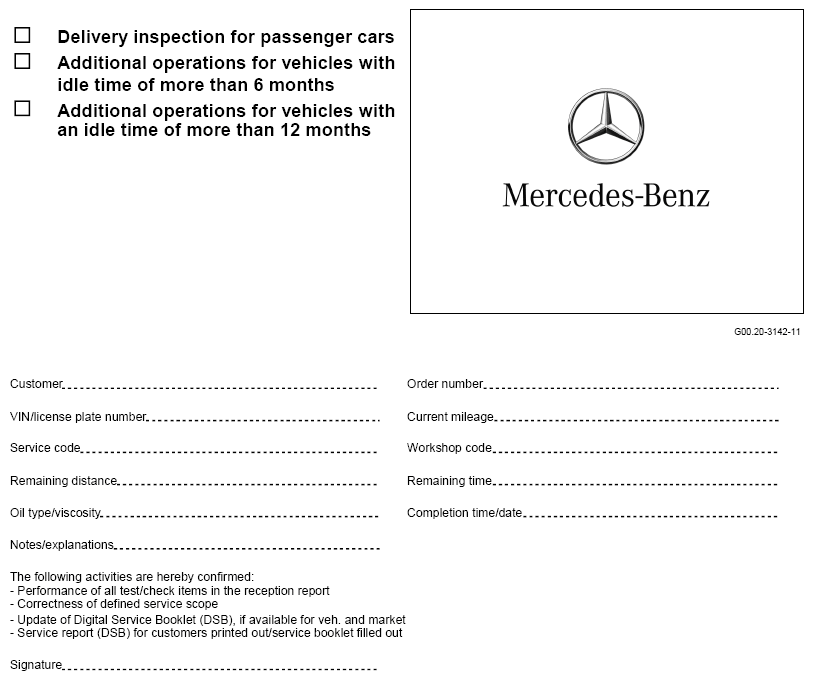

Perform Delivery And Hand-Over Inspection - AP00.20-P-1100B

MODEL 117, 156, 166, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 231, 238, 242, 246, 253, 257, 292, 461, 463

Courtesy of MERCEDES-BENZ USA

A	Z6	Z12		Input condition not OK:	ⓧ
Completed
□			General  The car delivery inspection is available on the information and communications platform (I & C platform as an app in the Retail Portal).
				Only for Germany. Under "Search" enter the term "Delivery inspection". All documents marked with a green box are valid. To be performed by the service advisor.  Only carry out delivery inspection shortly before vehicle handover.
□			Check vehicle for any unresolved service measures.	To be performed by the service advisor.  If problems occur, ↓ Subject to separate repair order, perform all open service measures.	◦
□			Confirm verification of delivery inspection in DSB (Digital Service Booklet).	Only in markets with DSB. LU To be performed by the service advisor.
□			If the vehicle needs to be moved, pay attention to engine and transmission operation.	If problems occur, ↓ Subject to separate repair order, perform fault detection and extended diagnosis.	◦
□			Vehicle exterior, body (cleaned, transport protection removed)  Check condition of wiper blades and wiping pattern.		◦
				If problems occur, ↓ Remedy complaint subject to separate repair order.		AP82.30-P-8253G
□			Detach protective foil of maintenance display from wiper blades.	Vehicle with maintenance display on wiper blades.		AP82.30-P-8253G
□			Fit covers to front towing eyes.	Model 463.234 with code ZQ0 (G 500 4x42 ) Model 463.255 with code MUK2 (USA or Canada vehicle model designation) Covers are included in scope of delivery.
□			Engine compartment  Check engine oil level.		◦
				Engine 112, 113, 133, 152, 156, 157, 159, 176, 177, 178, 256, 260, 270, 271, 272, 273, 274, 275, 276, 277, 278, 279, 282, 607, 608, 612, 626, 628, 629, 642, 646, 651, 654, 656		AP18.00-P-1848U
□			Check coolant level in coolant expansion reservoir.		◦	AP20.30-P-2049U
□			Check windshield washer system fluid level		◦
				Model 117, 156, 166, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 231, 238, 242, 246, 253, 257, 292, 463		AP82.35-P-8249U
				Model 461		AP82.35-P-8210G
□			Check all visible parts in engine compartment for damage and leaks.		◦
				Model 117, 156, 176, 177, 242, 246		AP00.20-P-0055AK
				Model 166, 292		AP00.20-P-0055D
				Model 172, 197.3/4, 204, 207, 212, 216, 218, 221, 231		AP00.20-P-0055EW
				Model 190		AP00.20-P-0055B
				Model 205		AP00.20-P-0055C
				Model 213, 238, 253, 257		AP00.20-P-0055E
				Model 217, 222		AP00.20-P-0055A
				Model 461		AP00.20-P-0053AB
				Model 463		AP00.20-P-0055F
□			Tire, brakes  Check tire pressure, correct if necessary and enter measurement values in table, except spare wheel		◦
				Model 117, 156, 166, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 231, 238, 242, 246, 253, 257, 292, 463		AP40.15-P-4061A
				Model 461		AP40.15-P-4060G
□			Assess condition of brake disks and enter evaluation in table		◦
□			Retighten wheel bolts.			AP42.10-P-4249U
□			Attach hub caps.	Model 461, 463
				Vehicle with hubcaps. Check hubcaps are correctly positioned relative to valve and that it is securely seated. Otherwise, the valve will be damaged or the hubcaps will be lost and further material damage may occur.
□			Underside of vehicle  Remove suspension travel limiters.
				Vehicle with suspension travel limiters.
				Model 190		AP32.25-P-3270A
□			Check axle portals and axles for leak tightness.		◦
				Model 463.234 with code ZQ0 (G 500 4x42 ) Model 463.255 with code MUK2 (USA or Canada vehicle model designation)
□			Vehicle interior  Confirm vehicle handover in instrument cluster
				Only for vehicle with driven distance of ≤ 250 km during first month, for stock vehicle as from maintenance message or immediately prior to vehicle handover to the customer.
□			Check time setting of clock; adjust if necessary		◦
□			Read out map data status from navigation system, check update and enter data in table.		◦
				If the map data release is not up-to-date, ↓ Subject to separate repair order, perform update of the map data release.		AP82.85-P-8249U
□			Check horn for proper operation.		◦
□			Check warning and function indicator lamps in instrument cluster.		◦
□			Check status of high-voltage battery on additional instrument display.		◦	AP54.30-P-5449U
				Model 242.890 Do not disconnect 12 V battery ground line. Otherwise, the high-voltage battery is not balanced, and this can lead to damage to the high-voltage battery. Enter state of charge of high voltage battery here: If the charge level of the high voltage battery drops below 50 % or if the display shows 1/2, ↓
				completely charge the high-voltage battery.
□			Transport mode  Deactivate transport mode and enter remaining service life/standby of battery in table.	Vehicle with activated transport mode.	◦
				Model 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242, 253, 292 Model 166.0, 172, 197.3/4, 204, 207.3/4, 212, 218.3, 246 as of model year 2013		AR54.00-P-0001A
				Model 177		AR54.00-P-0001MFA
				Model 213, 238		AR54.00-P-0001LWE
□			Check charge level of on-board electrical system battery using instrument cluster.		◦
				Vehicle without activated transport mode. Model 166.0, 172, 197.3/4, 204, 207, 212, 218, 246 up to model year 2013 Model 216, 221 If the permissible charge level of the 12 V on-board electrical system battery is dropped below, ↓ charge the on-board electrical system battery and then perform a Midtronics test, subject to separate repair order.		AR54.10-P-1132A
□			Miscellaneous  Deactivate transport level.		◦
				Vehicle with activated transport level.
				Model 222 (except 222.179/187/188) as of model year 2018 except code 487 (MAGIC BODY CONTROL)		AP32.30-P-3212A
□			Enter any other faults into table.		◦
	□		Additional operations with idle time of more than 6 months  Renew brake fluid.
				Model 117, 156, 166, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 231, 238, 242, 246, 253, 257, 292, 461, 463
				Model 117, 156, 176, 242, 246		AP42.00-P-4280AK
				Model 166, 292		AP42.00-P-4280GZ
				Model 172, 231		AP42.00-P-4280V
				Model 177		AP42.00-P-4280E
				Model 190		AP42.00-P-4280B
				Model 197.3/4		AP42.00-P-4280RQ
				Model 204, 205, 207, 212, 218		AP42.00-P-4280EW
				Model 213, 238, 253, 257		AP42.00-P-4280C
				Model 216 Model 221.0/1		AP42.00-P-4280SX
				Model 217, 222		AP42.00-P-4280HA
				Model 461		AP42.50-P-4280G
		□	Additional operations with non-operational time of more than 12 months  Replace AdBlue®.
				Vehicle with AdBlue® Model 166, 172, 177, 204, 205, 207, 212, 213, 218, 221, 222, 238, 253, 257, 292, 463
				Model 166 with engine 642, 651 with code U42 (BlueTEC diesel exhaust treatment (SCR)) Model 292 with engine 642 with code U77 (Diesel Emission control BLUETEC (SCR))		AR14.40-P-2014-02GQ
				Model 172 with engine 651 with code U77 (Diesel Emission control BLUETEC (SCR))		AR14.40-P-2014-02CDA
				Model 205, 253 with engine 651 with code U77 (Diesel Emission control BLUETEC (SCR))		AR14.40-P-2014-02LWB
				Model 207 with engine 642 with code U77 (Diesel Emission control BLUETEC (SCR)) Model 207 with engine 651 with code U77 (Diesel Emission control BLUETEC (SCR))		AR14.40-P-2014-02ECM
				Model 212, 218 with engine 642 with code U77 (Diesel Emission control BLUETEC (SCR)) Model 212, 218 with engine 651 with code U77 (Diesel Emission control BLUETEC (SCR)) Model 212, 221 with engine 642 with code U42 (BlueTEC diesel exhaust treatment (SCR))		AR14.40-P-2014-02GZB
				Model 213, 238 with engine 654 with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3) Model 213, 238, 253 with engine 642 with code U77 (Diesel Emission control BLUETEC (SCR))		AR14.40-P-2068OGW
				Model 222 with engine 642 with code U77 (Diesel Emission control BLUETEC (SCR))		AR14.40-P-2014-02LF
				Model 463.306/336/346/348 with engine 642		AR14.40-P-2014-02G
		□	Engine: Change oil and oil filter.			AP18.00-P-1846U
