Check All Visible Parts In Engine Compartment For Damage And Leaks - AP00.20-P-0055D

MODEL 166, 292

Shown on engine 276.8 in model 292

Courtesy of MERCEDES-BENZ USA

Shown on engine 276.8 in model 292

Courtesy of MERCEDES-BENZ USA

	Notes on evaluating leakages		AH00.00-N-0011-01A
	Remove

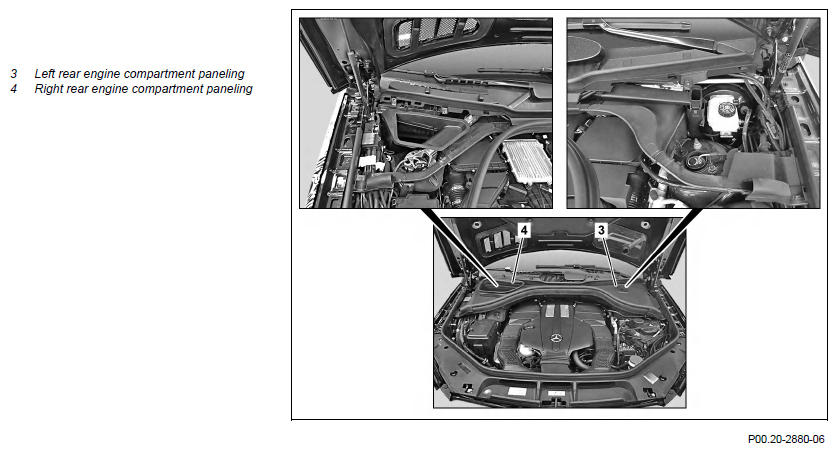

1	Remove cover for left rear engine compartment (3) and cover for right rear engine compartment (4)

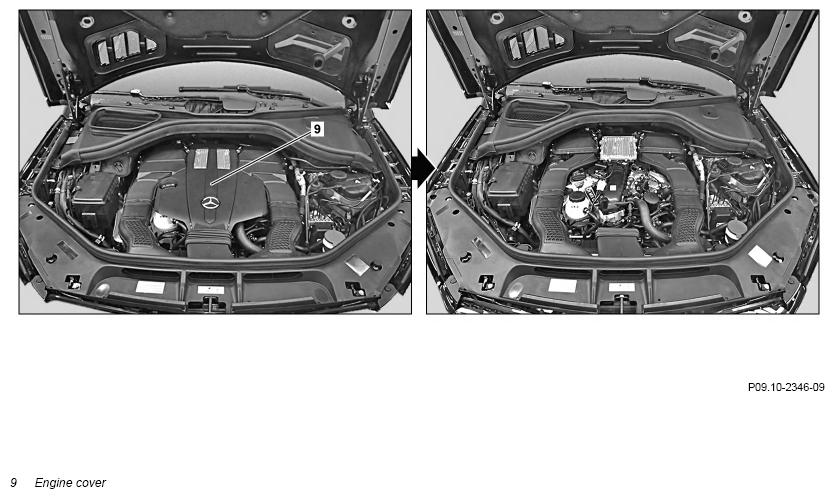

2	Remove engine cover (9)
	Check
3	Check that visible systems and components in engine compartment are in good condition, are not leaking and are attached securely	Engine and mounted major assemblies, Hybrid components (equipment specific), Exhaust system, Cooling system, Heater and A/C system, Fuel system, Steering, Brake system. If there are problems: ↓ Rectify problem subject to separate repair order.
4	Check that visible lines and hoses in engine compartment are in good condition, are not leaking, are routed correctly and are attached securely	Engine and mounted major assemblies, Hybrid components (equipment specific), Exhaust system, Cooling system, Heater and A/C system, Fuel system, Steering, Brake system, Electrical components. If there are problems: ↓ Rectify problem subject to separate repair order.
5	Check visible systems, components and body panels, lines and hoses in engine compartment on vehicle for damage, routing, leaks, mounting and corrosion		AP00.20-P-0054F
	Install
6	Install cover for left rear engine compartment (3) and cover for right rear engine compartment (4)
7	Install engine cover (9)
