Check All Visible Parts Of Vehicle Underside For Damage And Leaks - AP00.20-P-0054F

MODEL 166, 292

Shown on model 166.003

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch damaged or defective components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers) must not carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Note on high-voltage on-board electrical system		AH54.00-P-0010-01A
	Notes on evaluating leakages		AH00.00-N-0011-01A
	Evaluation of high-voltage components		AH54.00-P-6500-01SXH
	Remove

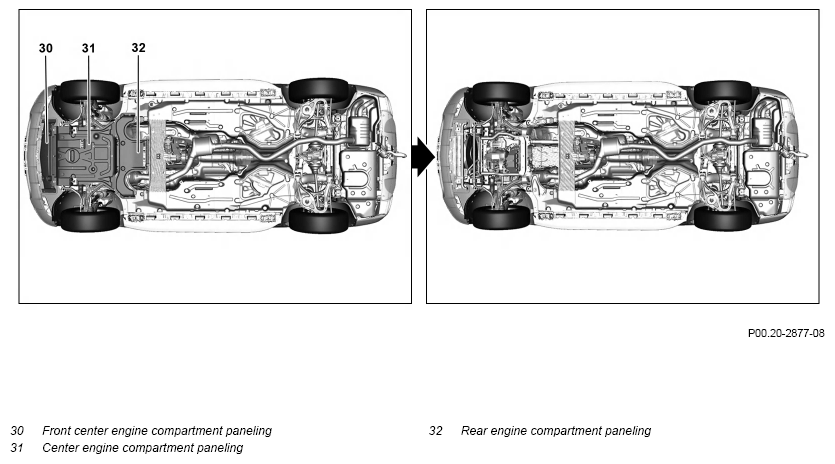

1	Remove front center engine compartment paneling (30), center engine compartment paneling (31) and the rear engine compartment paneling (32)
			AR61.30-P-1001GQ
	Check
2	Check visible systems, powertrain components, lines, hoses on the underfloor for damage, correct routing, leaks, correct mounting and corrosion	Brake system, Spring elements, Shock absorber, Suspension lines and sensors, Steering, Front axle, Engine and mounted major assemblies, Cooling system, Heater and A/C system, Transmission, Exhaust system, Exhaust aftertreatment, Actuator motors of exhaust gas flaps, Heat shields, Rear axle, Rear axle shafts with boots, Rear axle differential, Fuel system. If there is a problem ↓ Rectify problem subject to separate repair order.
3	Check visible systems, components, lines and hoses on the underfloor for damage, correct routing, leaks, correct mounting and corrosion	Equipment-dependent. Front axle shafts with boots (4MATIC), Front axle transmission (4MATIC), Stationary heater, Hybrid components, Transfer case (4MATIC). If there is a problem ↓ Rectify problem subject to separate repair order.
4	Check underfloor and visible components on underfloor for damage, routing, mounting and corrosion	Wheel well trim Underfloor paneling, Underfloor. If there is a problem ↓ Rectify problem subject to separate repair order.
5	Check visible body panels for corrosion and deformation	Wheel well body panels Front axle carrier, Rear axle carrier, Chassis steering arms, Underfloor body panels, Body reinforcements. If there is a problem ↓ proceed in accordance with the country-specific regulations for mobility and body shell complaints.
6	Check vehicle underside for evidence of driving over obstacles or damage caused by contact with the vehicle underside	If driving over obstacles or damage caused by contact with the vehicle underside is suspected ↓ Check steering for mechanical damages. If the steering shows signs of mechanical damage. ↓ Subject to separate repair order, replace steering for safety reasons.
	Install
7	Install front center engine compartment paneling (30), center engine compartment paneling (31) and the rear engine compartment paneling (32)
			AR61.30-P-1001GQ
