Remove/Install Wheels - AR40.10-P-1100GQC
MODEL 292
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on tires/rims | AH40.10-P-9411-01A | ||
| Remove | |||
| 1 | Raise vehicle with vehicle lift | AR00.60-P-1000GZ | |
| 2 | Remove hubcaps | Only for vehicles with hubcaps. | |
| 3 | Unscrew wheel bolts and remove wheels using wheel lift | Remove wheels using wheel lift only. Otherwise, the brake disks and wheels may be damaged. |
|
| Check | |||
| 4 | Check condition of tires | ||
| AP40.10-P-4051EW | |||
| 5 | Clean wheel bolt connections, check them and protect against corrosion | ||
| AP40.10-P-4050-01A | |||
| Paste, hot lubrication 1 kg, DBL 6879.20 | *BR00.45-Z-1005-06A | ||
| Install | |||
| 6 | Change round wheels on front and rear axle | If necessary, subject to separate repair order and only for vehicles without mixed tires. The running direction must be observed here. Otherwise, handling characteristics and handling comfort may be impaired and tire wear increased. |
|

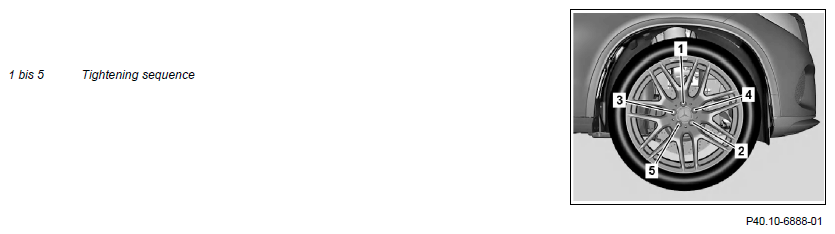

| 7 | Mount wheels using wheel lift and tighten wheel bolts | Install wheels using wheel lift only. Otherwise, the brake disks and wheels may be damaged. |
*BA40.10-P-1001-01J |
| 8 | Lower vehicle | ||
| 9 | Correct tire pressure of front and rear axle tires | ||
| In the event of unusual tire pressure loss ↓ Determine and rectify cause, subject to separate repair order |
AP40.15-P-4061A | ||
| 10 | Mount hubcaps | Only for vehicles with hubcaps. Check hubcaps are correctly positioned relative to valve and that it is securely seated. Otherwise the valve will be damaged or the hubcaps will be lost. |
|
| 11.1 | Restart tire pressure monitor (TPM) | Model 292 with code 475 (Tire pressure monitoring system) Only for wheel-and-tire assembly change, tire replacement or a change in tire pressure. | AR54.30-P-1001-01GQC |
| 11.2 | Activate tire pressure loss warning | Model 292 except code 475 (Tire pressure monitoring system) Only for wheel-and-tire assembly change, tire replacement or a change in tire pressure. |
WHEELS
| Number | Designation | Model 292 | |
|---|---|---|---|
| BA40.10-P-1001-01J | Wheel bolt | Nm | 150 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DBL 6879.20 | A 000 989 76 51 |
