Restart Tire Pressure Monitor (TPM) - AR54.30-P-1001-01GQC

MODEL 292 with CODE 475 (Tire pressure monitoring system)

1. Correct tire pressure of all complete wheels.
2. Switch on ignition.

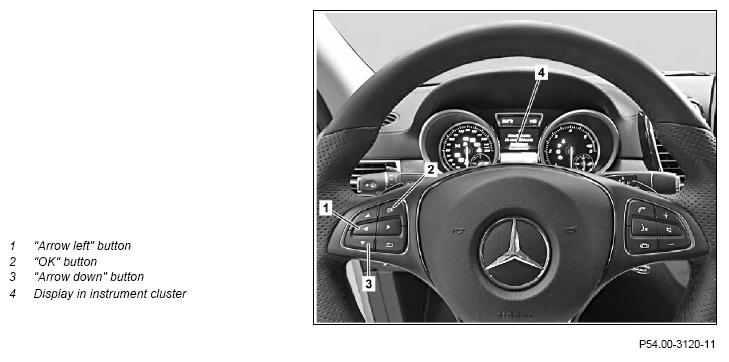

3. Press "Arrow left" button (1) repeatedly until "Service" menu is highlighted in display in instrument cluster (4).
4. Use "Arrow down" button (3) to select "Tire Pressure" menu.
5. Press "OK" button (2).

   In the display of the instrument cluster (4), the current tire pressures or the note "Tire pressure display appears after driving for a few minutes" are displayed.

6. Use "Arrow down" button (3) to select menu item "Adopt current pressures as new guideline values".
7. Press "OK" button (2).

   The note "Tire pressure monitoring restarted" is shown in the display in the instrument cluster (4).

   After a few minutes' driving the tire pressures are displayed and monitored.

8. Switch off ignition.
