Remove/Install Air Suspension Control Unit - AR32.22-P-6000GQC
MODEL 292 with CODE 489 (AIRMATIC)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 |
Connect diagnostic system and store basic data of air suspension control unit (3) | Only when replacing the air suspension control unit (3). | AD00.00-P-2000-04A |
| 2 | Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m) | ||
| 3 | Remove lining on the right-hand side of the trunk | AR68.30-P-4800GQC | |
| 4 | Loosen paneling from right C-pillar | AR68.30-P-4490GQC | |

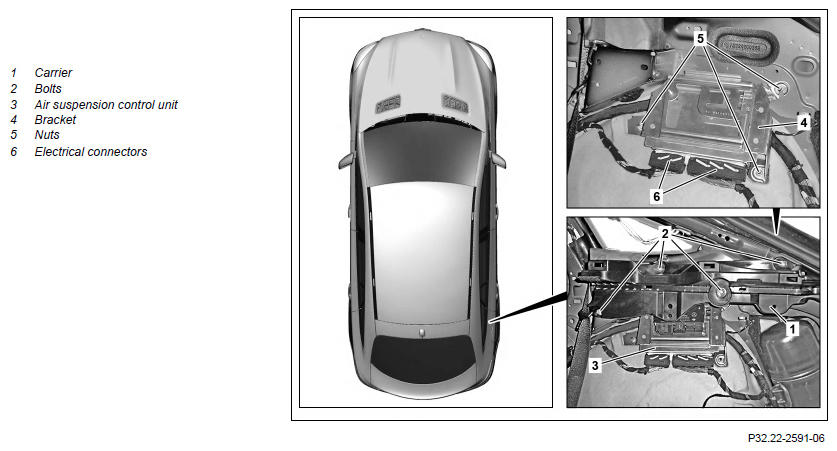

| 5 | Unscrew bolts (2) | ||
| 6 | Remove carrier (1) under paneling on right C-pillar | ||
| 7 | Unscrew nuts (5) | ||
| 8 | Remove bracket (4) | ||
| 9 | Unplug electrical connectors (6) from air suspension control unit (3) | ||
| 10 | Unscrew air suspension control unit (3) from bracket (4) | ||
| 11 | Install in the reverse order | ||
| Initial startup | |||
| 12 | Perform SCN coding of air suspension control unit (3) | Only when replacing the air suspension control unit (3). | AR54.21-P-0015X |
| 13 |
Transfer previously stored basic data to air suspension control unit (3) | Only when replacing the air suspension control unit (3). | AD00.00-P-2000-04A |
| 14 | Perform initial startup of air suspension control unit (3) | Only when replacing the air suspension control unit (3). |
