Remove/Install Trim At C-Pillar - AR68.30-P-4490GQC
MODEL 292
| Remove/install | |||
| 1 | Remove side paneling in trunk | AR68.30-P-4800GQC | |

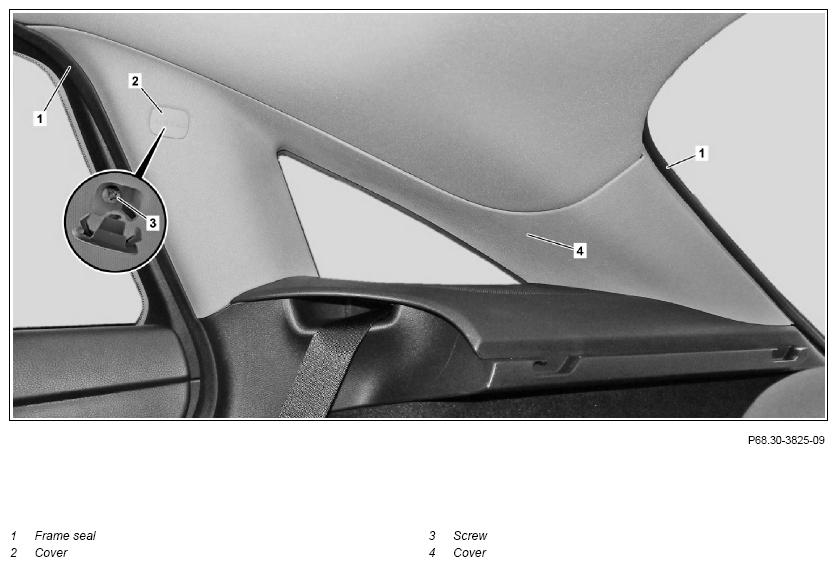

| 2 | Detach sealing frame (1) in working area | ||
| 3 | Unclip cover (2) | Figure | |
| 4 | Unscrew bolt (3) | ||
| 5 | Unclip paneling (4) | Fig 1 | |
| 6 | Remove cover (4) | ||
| 7 | Install in the reverse order |
