Remove/Install Driver Kneebag - AR91.60-P-0200GQ
MODEL 166, 292

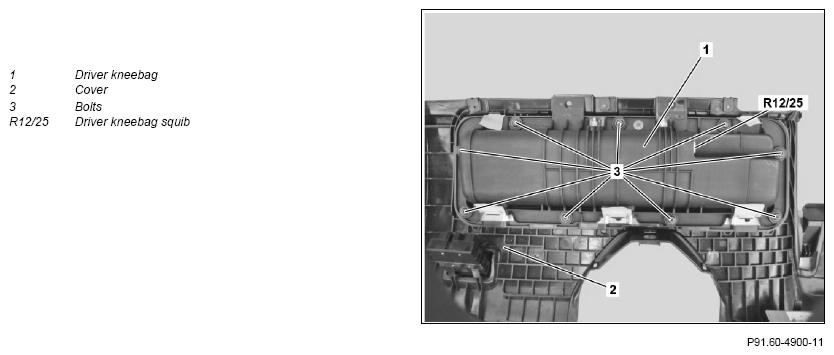

Shown on MODEL 166 up to model year 2014

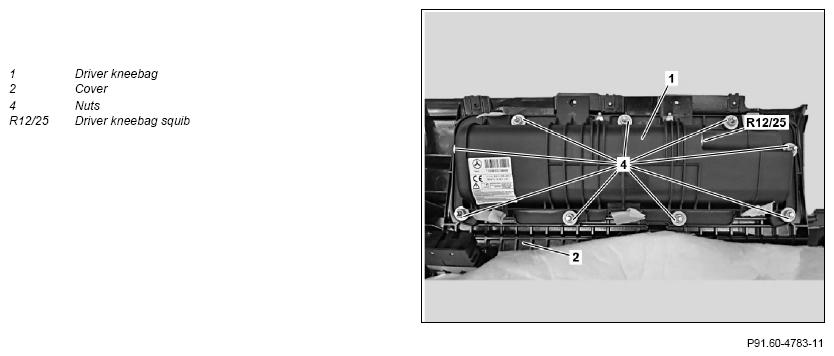

Shown on MODEL 166 as of model year 2014
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components. |
AS91.00-Z-0008-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Disconnect battery ground line | AR54.10-P-0003GZ | |
| 3 | Remove bottom section of dashboard | AR68.10-P-1505GQ | |
| 4 | Release and disconnect electrical connection | AR68.10-P-1505GQ | |
| Fig 1 | |||
| 5.1 | Remove bolts (3) | Model 166 up to model year 2014 |
*BA91.60-P-1016-01H |
| 5.2 | Unscrew nuts (4) | Model 166 as of model year 2014 Model 292 |
*BA91.60-P-1015-01H |
| 6 | Remove driver kneebag (1) | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check and erase vehicle fault memory using the diagnostic system | After replacing driver kneebag (1). | |
| AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA91.60-P-1015-01H | Nut, kneebag to instrument panel, bottom | Nm | 7 | 7 |
AIRBAG
| Number | Designation | Model 166 | |
|---|---|---|---|
| BA91.60-P-1016-01H | Screw/bolt, kneebag to instrument panel, bottom | Nm | 3 |
