Remove/Install Dashboard Lower Section On Driver Side - AR68.10-P-1505GQ
MODEL 166, 292
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components. |
AS91.00-Z-0008-01A | |
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Move steering wheel to rearmost position | ||
| 2 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Disconnect battery ground line | AR54.10-P-0003GZ | |
| 4 | Remove center console | AR68.20-P-2000GQ | |
| 5 | Remove glove compartment | AR68.10-P-1400GQ | |
| 6 | Remove left and right trim piece on instrument panel | AR68.10-P-1180GQ | |

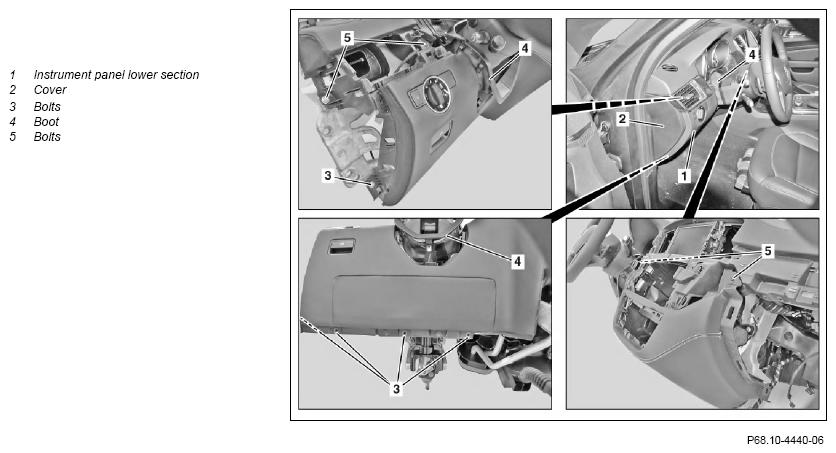

| 7 | Unclip paneling (2) | Figure | |
| 8 | Remove boot (4) from instrument panel bottom section (1) | ||
| 9 | Remove cover on left below instrument panel bottom section (1) | AR68.10-P-1500GQ | |
| 10 | Unscrew bolts (3) from instrument panel bottom section (1) | ||
| 11 | Unscrew bolts (5) from instrument panel lower section (1) | ||
| 12 | Lower instrument panel bottom section (1) | ||

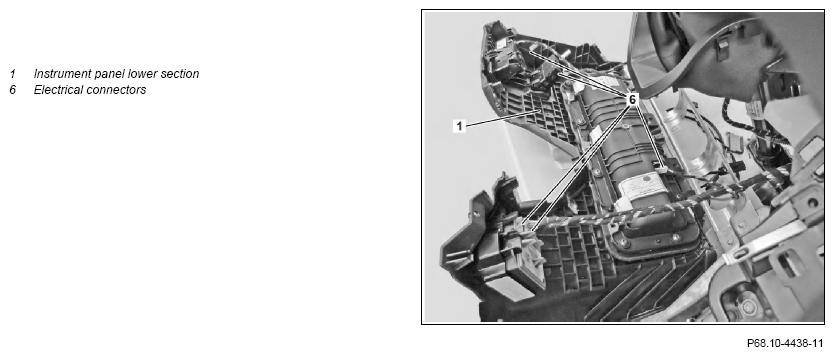

| 13 | Release and disconnect electrical connectors (6) | ||
| 14 | Remove instrument panel lower section (1) | Otherwise, the integrated driver kneebag can be damaged by the instrument panel lower section (1). |
|
| 15 | Install in the reverse order | ||
| 16 | Transfer driver kneebag | When replacing instrument panel lower section (1). | AR91.60-P-0200GQ |
| Check | |||
| 17 | Carry out function check |
