Remove/Install Parktronic Warning Indicator In Rear - AR54.65-P-0017GQC
MODEL 292
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Release headliner far enough to gain access to the PARKTRONIC warning indicator in the rear (1) | AR68.30-P-4300GQC | |
| 2 | Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m) | ||

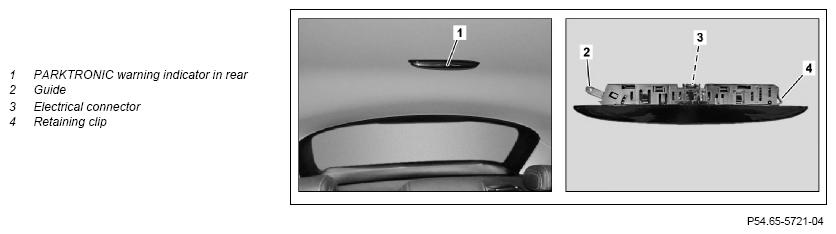

| 3 | Unclip retaining clip (4) of PARKTRONIC warning indicator in rear (1) | Figure | |
| 4 | Pull guide (2) of PARKTRONIC warning indicator in rear (1) out of headliner | ||
| 5 | Detach electrical connection (3) and remove PARKTRONIC warning indicator in rear (1) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform function check of PARKTRONIC warning indicator in rear (1) |
