Remove/Install Taillamp, Trunk Lid - AR82.10-P-4915GQC
MODEL 292
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

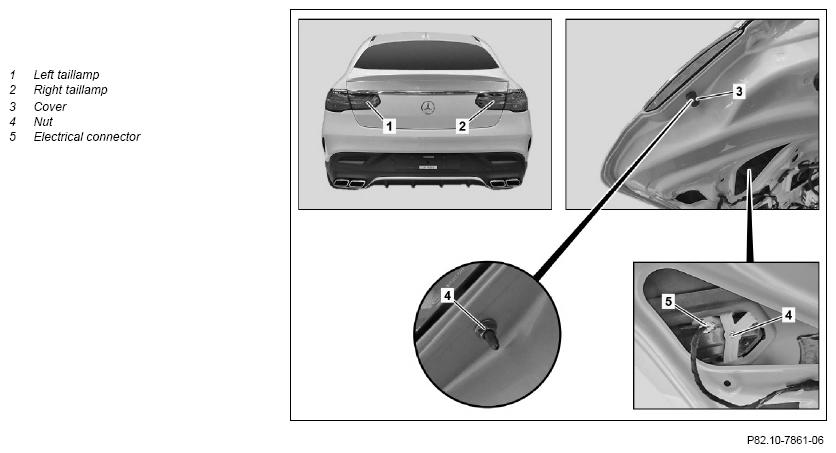

| 1 | Remove door trim for liftgate center | AR72.20-P-6445GQC | |
| 2 | Disconnect electrical connector (5) | ||
| 3 | Remove cover (3) | ||
| 4 | Unscrew nuts (4) | ||
| 5 | Remove left taillamp (1) with bracket or right taillamp (2) with bracket | ||
| 6 | Install in the reverse order |
