Remove/Install Radio Antenna Amplifier - AR82.62-P-8301GQC
MODEL 292
with CODE 494 (US version)
MODEL 292
with CODE 537 (Digital radio (DAB))
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

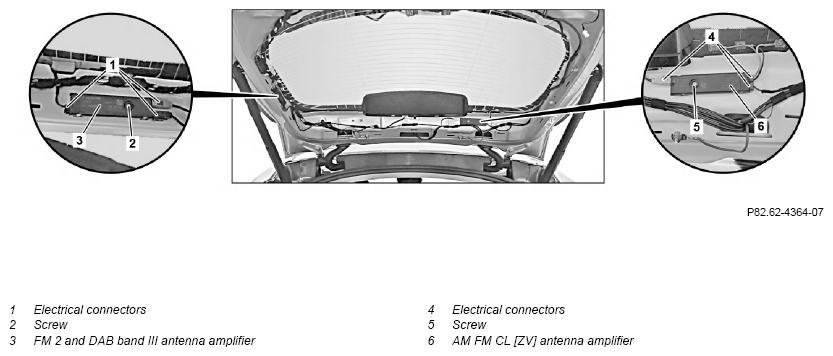

| 1 | Remove door trim on liftgate | AR72.20-P-6445GQC | |
| 2 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Separate electrical connections (1) | When replacing the FM 2 and DAB band III antenna amplifier (3). | |
| 4 | Disconnect electrical connections (4) | When replacing the AM FM CL [ZV] antenna amplifier (6). | |
| 5 | Unscrew bolt (2) | When replacing the FM 2 and DAB band III antenna amplifier (3). | |
| 6 | Remove screw (5) | When replacing the AM FM CL [ZV] antenna amplifier (6). | |
| 7 | Remove FM 2 and DAB band III antenna amplifier (3) or AM FM CL [ZV] antenna amplifier (6) | ||
| 8 | Install in the reverse order |
