Remove/Install Emergency Call System Antenna - AR82.95-P-0017GQC

MODEL 292 with CODE 348 (Emergency call/assistant system)

MODEL 292 with CODE 350 (Ecall emergency call system, Europe)

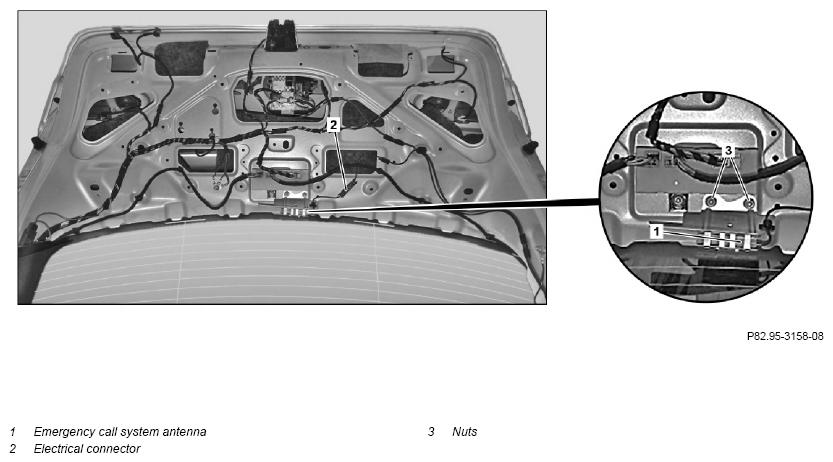

G11970246
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove door trim for liftgate center   AR72.20-P-6445GQC
2 Unclip electrical connector (2) and disconnect
3 Unscrew nuts (3)
4 Remove emergency call system antenna (1)
5 Install in the reverse order
