Remove/Install Center High-Mounted Stop Lamp - AR82.10-P-5375GQC
MODEL 292
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear shelf | ||
| 2 | Remove center upper liftgate door trim | AR72.20-P-6445GQC | |
| 3 | Disconnect electrical connection (2) | ||

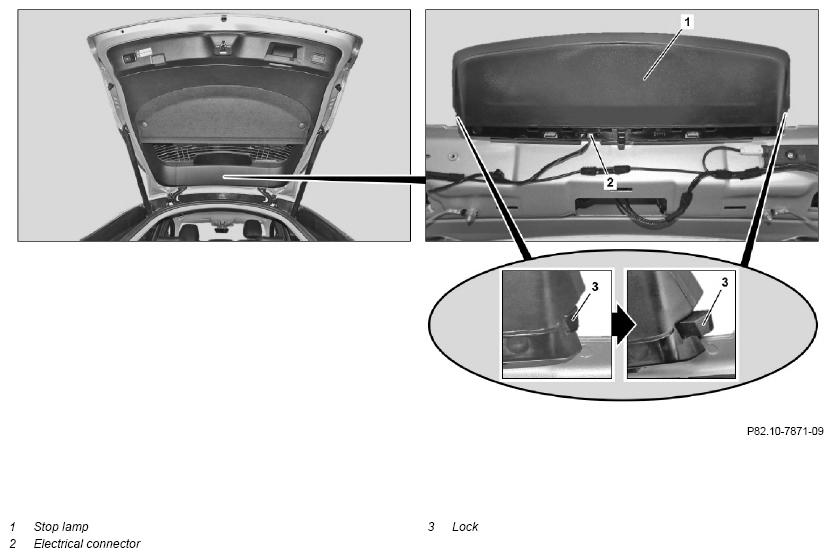

| 4 | Press locks (3) outwards | Fig 1 | |
| 5 | Remove brake lamp (1) | ||
| 6 | Install in the reverse order |
