Remove/Install Antenna - AR82.70-P-8951GQC
MODEL 292
| Remove/install | |||
| 1 | Remove cover from antenna | AR82.70-P-8952EW | |
| 2 | Remove door trim from liftgate | AR72.20-P-6445GQC | |

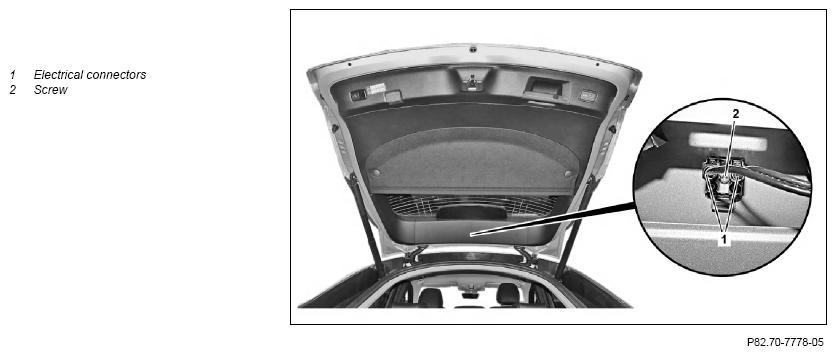

| 3 | Separate electrical connections (1) | ||
| 4 | Unscrew bolt (2) | ||
| 5 | Unclip and remove antenna | ||
| 6 | Install in the reverse order |
