Remove/Install Roller Sun Blind Guide Rail - AR77.21-P-0231GQC
MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

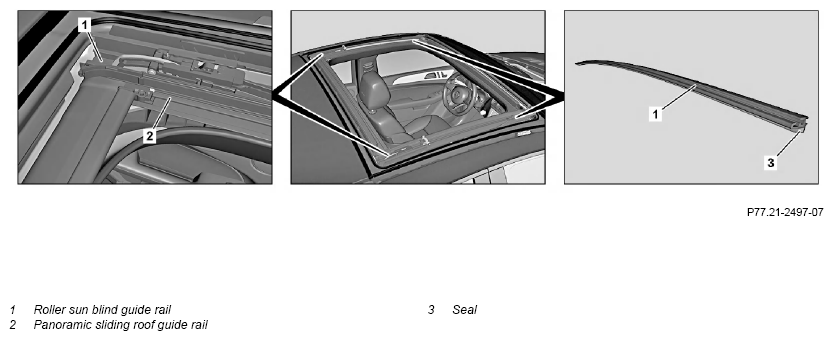

| 1 | Detach left and right panoramic sliding roof guide rail (2) | AR77.21-P-0430GQC | |
| 2 | Pull roller sun blind guide rail (1) from panoramic sliding roof guide rail (2) | ||
| 3 | Install in the reverse order |
