Remove/Install Differential Lock Actuator Motor - AR35.40-P-7400LW
Model 205.086/087/286/287/386/387/486/487
Model 253.388/389/988/989
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Remove/install | |||
| 1 | Raise vehicle | AR00.60-P-1002LWG | |

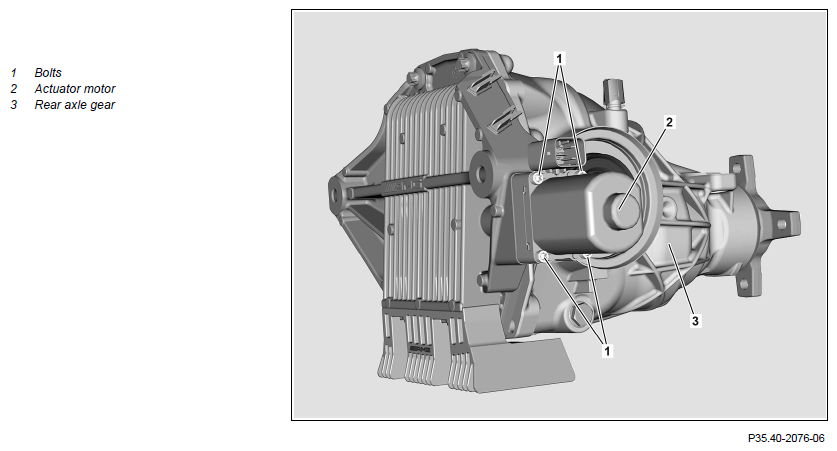

| 2 | Clean area around actuator motor (2) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 3 | Remove electrical line from actuator motor (2) | ||
| 4 | Unscrew screws/bolts (1) and remove actuator motor (2) in downward direction | *BA35.40-P-1001-02A | |
| 5 | Clean contact surface on rear axle differential (3) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 6 | Install in the reverse order | ||
| Check | |||
| 7 | Check and correct oil level of rear axle differential (3) | Model 205.086/087/286/287 | AR35.31-P-0520-03LW |
| Model 205.386/387/486/487 | |||
| Model 253.388/389/988/989 | AR35.31-P-0520-08MNA | ||
| Sealant, Omnifit 100H (50 g) | *BR00.45-Z-1061-01A | ||
| Loctite 7063 cleaning spray (150 ml) | *BR00.45-Z-1046-04A | ||
| BF35.31-P-1003-01U | |||
| *BF35.31-P-1003-02B | |||
| *BA35.31-P-1002-02H |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA35.31-P-1002-02H | Oil filler screw of rear axle differential | Nm | 50 | 50 |
DIFFERENTIAL LOCK
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA35.40-P-1001-02A | Bolt, actuator motor for differential lock to rear axle differential | Nm | 8 | 8 |
REAR AXLE GEAR
| Number | Designation | Model 205.086/087/286/287/386/387/486/487 | |
|---|---|---|---|
| BF35.31-P-1003-01U | Filling capacity for rear axle differential with differential lock | Liter | 1, 2 |
| Specification | BB00.40-P-0235-61A | ||
REAR AXLE GEAR
| Number | Designation | Model 253.388/389/988/989 | |
|---|---|---|---|
| BF35.31-P-1003-02B | Filling capacity for rear axle differential with differential lock | Liter | 1, 2 |
| Specification | BB00.40-P-0235-61A | ||
| Overview of specified transmission oils | - | ||
| Approved axle gear oils | - | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
| BR00.45-Z-1046-04A | Loctite 7063 cleaning spray (150 ml) | A 001 986 71 71 10 |
| BR00.45-Z-1061-01A | Sealant, Omnifit 100H (50 g) | A 002 989 23 71 |
