Remove/Install Elastomer Bearing Of Spring Control Arm On Wheel Carrier - AR35.20-P-3401LWX
Model 253.388/389/988/989
Removal shown on left side of vehicle
Installation shown on left side of vehicle
| Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | ||
| Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | ||
| Remove | |||
| 1 | Remove spring control arm | AR35.20-P-0119LWX | |
| 2 | Detach brake caliper support with brake caliper and hang up to one side with lines still connected | AR42.10-P-0080LW | |
| 3 | Grease spindle of extraction and insertion tool (3) with rolling-element bearing grease | ||
| High temperature antifriction bearing grease (NLGI grade 2) | BB00.40-P-0265-01A | ||
| Fig 1 | |||

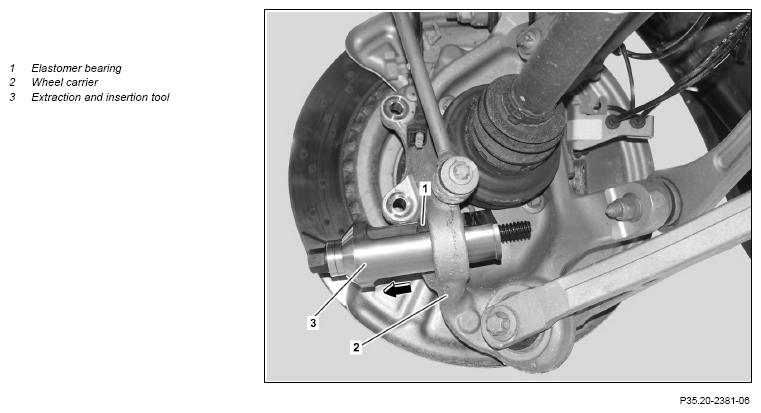

| 4 | Position extraction and insertion tool (3) on wheel carrier (2) and elastomer bearing (1) as shown | ||
| Fig 1 | |||
| 5 | Pull elastomer bearing (1) out of wheel carrier (2) in direction of arrow and remove | ||
| Install | |||
| 6 | Grease spindle of extraction and insertion tool (3) again with rolling-element bearing grease | ||
| High temperature antifriction bearing grease (NLGI grade 2) | BB00.40-P-0265-01A | ||
| Fig 1 | |||

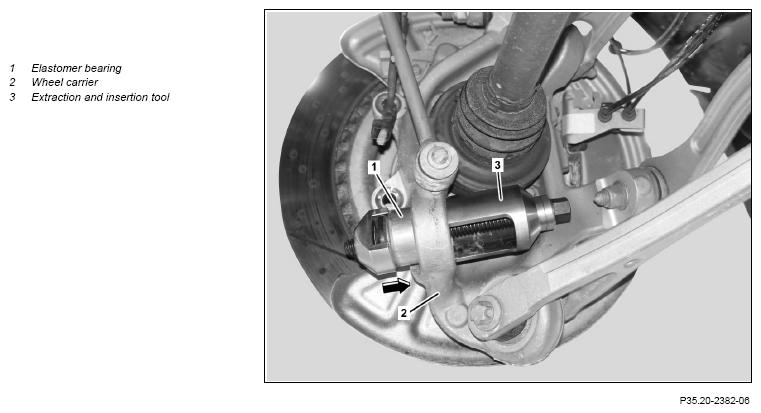

| 7 | Position extraction and insertion tool (3) with new elastomer bearing (1) on wheel carrier (2) as shown | Fig 1 | |
| 8 | Pull new elastomer bearing (1) into wheel carrier (2) | The elastomer bearing (1) must be seated in the center of the wheel carrier (2). |
|
| 9 | Detach extraction and insertion tool (3) | Fig 1 | |
| 10 | Attach brake caliper support together with brake caliper | AR42.10-P-0080LW | |
| 11 | Install spring control arm | AR35.20-P-0119LWX |
