Remove/Install Elastomer Bearing Of Front And Rear Suspension Of Rear Axle Carrier - AR35.10-P-0047LWX

Model 253.388/389/988/989

Courtesy of MERCEDES-BENZ USA

	Remove/install

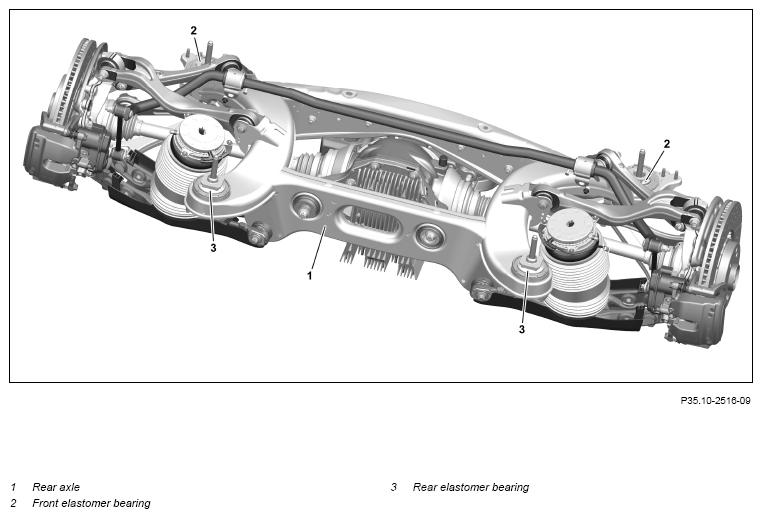

1	Remove rear axle (1)		AR35.10-P-0010LWX
2	Remove front elastomer bearing (2)		AR35.10-P-0040-02LW
		Always replace front elastomer bearings (2) in pairs.
		Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
		Extraction and insertion tool	Fig 1
		Hydraulic hose (complete)	Fig 6
		Hollow cylinder	Fig 3
		Hand pump	Fig 2
		Securing belt	Fig 5
3	Remove rear elastomer bearing (3)		AR35.10-P-0040-03LW
		Always replace rear elastomer bearings (3) in pairs.
		Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
		Hydraulic hose (complete)	Fig 6
		Hollow cylinder	Fig 3
		Hand pump	Fig 2
		Extraction and insertion tool	Fig 4
		Securing belt	Fig 5
4	Install in the reverse order

Fig 1: Identifying Extraction And Insertion Tool (205 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hollow Cylinder (652 589 00 33 22)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Extraction And Insertion Tool (204 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Securing Belt (001 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Hydraulic Hose - Complete (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
