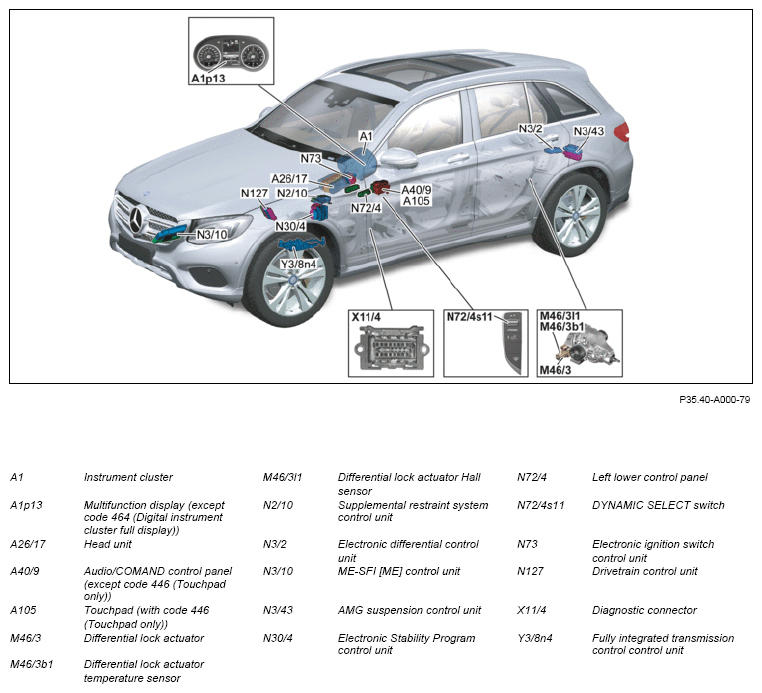

Overview Of System Components Of Electric Differential Lock (EAGGS) - GF35.40-P-9999AVJ

Model 253 with code 467 (Electronic locking differential)

G12819466Courtesy of MERCEDES-BENZ USA

Show on model 253.9

Sectional view of differential lock

Fig 1: Differential Lock Actuator Components Location - Model 253
G12819467Courtesy of MERCEDES-BENZ USA
  Component description for instrument cluster A1 GF54.30-P-6000RF
  Head unit, component description Model 253 (except 253.99) up to model year 2020 with code 467 (Electronic locking differential) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 GF82.85-P-3140RF
    Model 253 (except 253.99) up to model year 2020 with code 467 (Electronic locking differential) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 GF82.85-P-3140RFA
    Model 253 up to model year 2020 with code 467 (Electronic locking differential) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 GF82.85-P-3140RFB
    Model 253 with code 467 (Electronic locking differential) with code 547 (Connect 20 Entry (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS)
Model 253 with code 467 (Electronic locking differential) with code 548 (Connect 20 MID (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS)
Model 253 with code 467 (Electronic locking differential) with code 549 (Connect 20 HIGH (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17		 GF82.85-P-3140RFM
  Component description for Audio/COMAND control panel Model 253 (except 253.99) up to model year 2020 with code 467 (Electronic locking differential) A40/9 GF54.21-P-4501RF
  Touchpad, component description Model 253 (except 253.99) as of model year 2020 with code 446 (Touchpad only) with code 467 (Electronic locking differential) A105 GF54.21-P-4511RF
  Supplemental restraint system control unit, component description N2/10 GF91.60-P-4080RF
  Electric differential lock control unit, component description N3/2 GF35.40-P-2000AVJ
  Component description for ME-SFI (ME) control unit Model 253 with engine 177.9 with code 467 (Electronic locking differential) N3/10 GF07.61-P-6000MNA
  AMG sports suspension control unit, component description Model 253 with transmission 725.096 with code 467 (Electronic locking differential) N3/43 GF54.21-P-1002AVJ
  Component description for Electronic Stability Program control unit Model 253 (except 253.311/354/911/954/99) with code 467 (Electronic locking differential) N30/4 GF42.45-P-5119RF
  Lower control panel, component description N72/4 GF54.25-P-4270RF
  Component description for the electronic ignition lock control unit Model 253 (except 253.99) up to model year 2020 with code 467 (Electronic locking differential) N73 GF80.57-P-6001RF
    Model 253 (except 253.99) as of model year 2020 with code 467 (Electronic locking differential) N73 GF80.57-P-6001RFM
  Drivetrain control unit, component description Model 253 with engine 177.9 with code 467 (Electronic locking differential) N127 GF54.21-P-2141MNA
  Component description for fully integrated transmission control unit Model 253 with transmission 725.0 with code 467 (Electronic locking differential) Y38n4 GF27.60-P-5165ANI
  Table of contents for function description of electric differential lock   GF35.40-P-0999AVJ
