Remove/Install 360° Camera Control Unit - AR54.30-P-3004GQ
MODEL 166 with CODE 501 (360 degree camera)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Read out data from 360° camera control unit (N148) with diagnostic system | When replacing 360° camera control unit (N148) | |
| AD00.00-P-2000-04A | |||
| 2.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 166 with CODE 501 (360 degree camera) without CODE 889 (KEYLESS-GO) |
|
| 2.2 | Detach KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 166 with CODE 501 (360 degree camera) with CODE 889 (KEYLESS-GO) |
|
| 3 | Remove left front seat | AR91.10-P-1000GQ | |
| 4 | Lift floor covering on the left in rear compartment | MODEL 166.0 with CODE 501 (360 degree camera) |
AR68.20-P-4800GQ |
| MODEL 166.8 with CODE 501 (360 degree camera) |
AR68.20-P-4800GQX | ||
| 5 | Remove bottom paneling from left B-pillar | AR68.30-P-4700GQ | |

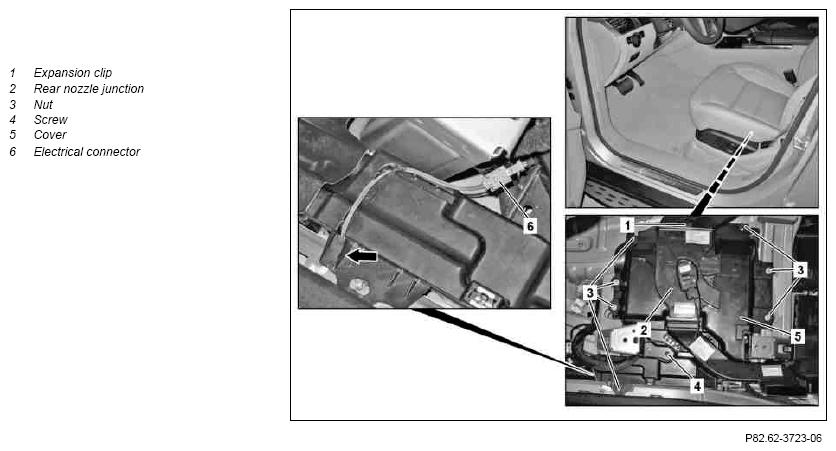

| 6 | Remove expansion clip (1) | ||
| 7 | Disconnect electrical connection (6) | ||
| 8 | Remove rear nozzle junction (2) | ||
| 9 | Unscrew nuts (3) and remove bolt (4) | ||
| 10 | Take off cover (5) | ||

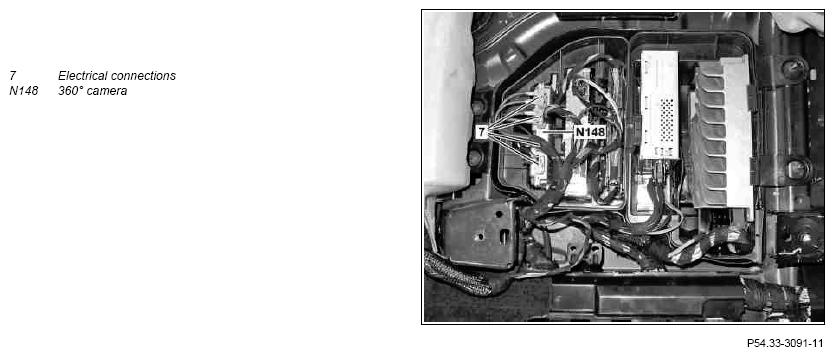

| 11 | Detach electrical connections (7) at 360° camera control unit (N148) | ||
| 12 | Release 360° camera control unit (N148) and remove upwards | ||
| 13 | Install in the reverse order | ||
| 14 | Transfer data read out from 360° camera control unit (N148) with diagnostic system | When replacing 360° camera control unit (N148) | |
| AD00.00-P-2000-04A |
