Remove/install rear shock absorber - AR32.25-P-0110GQX

MODEL 166

Shown on model 166.873

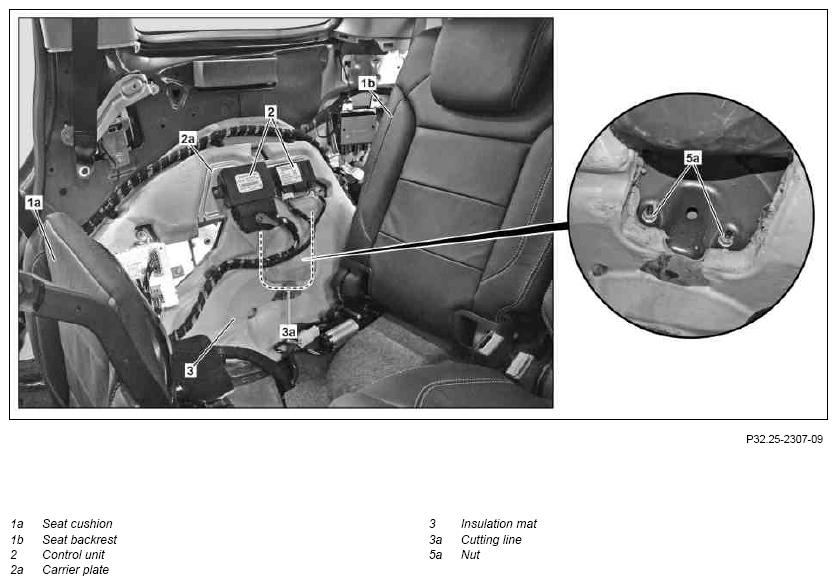

Fig 1: Identifying Rear Shock Absorber Remove/Install Components - Shown On Model 166.873

Courtesy of MERCEDES-BENZ USA

Shown on model 166.873

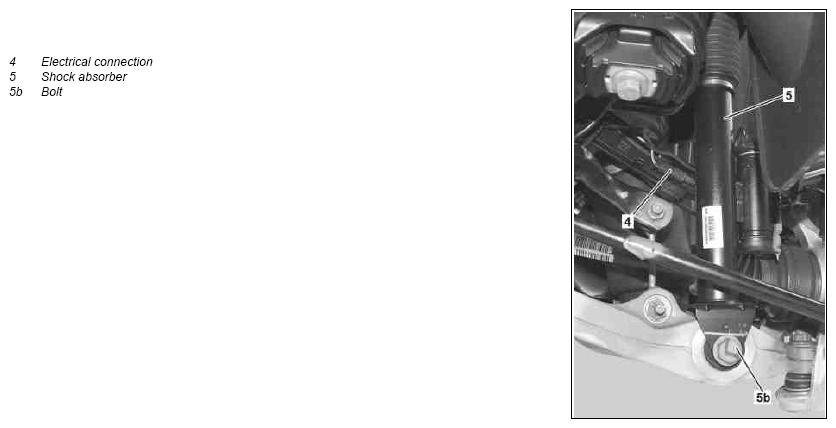

Fig 2: Identifying Rear Shock Absorber Remove/Install Components - Shown On Model 166.873

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of the mechanism when the components are moving.	AS00.00-Z-0009-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
1	Remove side paneling in trunk	MODEL 166.0	AR68.30-P-4800GQ
1	Remove side paneling in trunk	MODEL 166.8	AR68.30-P-4800GQX
2	Remove seat cushion (1a) of backrest (1b) in 3rd seat row and fold forward	MODEL 166.8
2		Bolt, rear seat cushion to rear seat console	*BA91.12-P-1004-03F
3	Remove control units (2) with connected lines from carrier plate (2a) and place to one side	MODEL 166.8
4	Cut insulation mat (3) along the marked cutting line (3a) and fold up	Carefully cut the insulation mat (3) and fold up. Otherwise the paint or the insulation mat (3) may get damaged. Seal cut in insulation mat (3) using adhesive tape.
5	Secure vehicle on vehicle lift		AR00.60-P-0100GZ
6	Detach rear complete wheel
	Detach rear complete wheel		AP40.10-P-4050EW
7	Remove inner fender from rear fender		AR88.10-P-1400GQ
8	Release and disconnect electrical connection (4)	MODEL 166 with CODE 489 (Airmatic (air suspension with level adjustment and adaptive damping system ADS))
9	Raise wheel suspension slightly at supporting joint	Wheel suspension must be supported. Otherwise the steel spring may come out or the air spring can be damaged. Transmission jack gotis://H_00.10_01. 0 Transmission platform gotis://A_25/35/49_02. 0
10	Unscrew nuts (5a)	Self-locking nut, shock absorber to frame floor	*BA32.25-P-1002-03K
11	Remove bolt (5b)	Self-locking nut, shock absorber to spring control arm	*BA32.25-P-1001-03K
12	Slide damper (5) together and remove
	Check
13	Check shock absorber (5)	MODEL 166 without CODE 489 (Airmatic (air suspension with level adjustment and adaptive damping system ADS))	AR32.25-P-0121A
14	Install in the reverse order

REAR AXLE SHOCK ABSORBER

Number	Designation			MODEL 166
BA32.25-P-1002-03K	Self-locking nut, shock absorber to frame floor	Stage 1	Nm	25
BA32.25-P-1002-03K	Self-locking nut, shock absorber to frame floor	Stage 2	Nm	35

REAR SEATS

Number	Designation		MODEL 166
BA91.12-P-1004-03F	Bolt, rear seat cushion to rear seat console	Nm	25

REAR AXLE SHOCK ABSORBER

Number	Designation			MODEL 166
BA32.25-P-1001-03K	Self-locking nut, shock absorber to spring control arm	Stage 1	Nm	180
BA32.25-P-1001-03K	Self-locking nut, shock absorber to spring control arm	Stage 2	∠°	90
