Remove/install side air vent - AR68.10-P-1100GWL
MODEL 463 as of model year 2013/model refinement package 2012,/left air vent
| Remove/install | |||

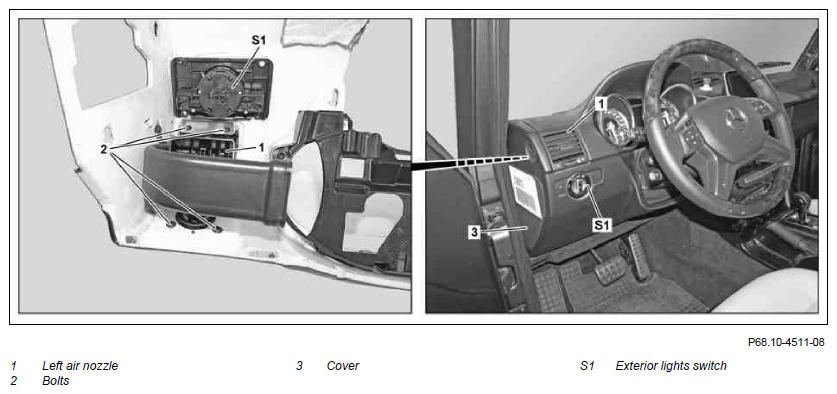

| 1 | Remove exterior lights switch (S1) | AR54.25-P-3270GW | |
| 2 | Unclip cover (3) | ||
| 3 | Remove left air duct from left air vent (1) | ||
| 4 | Unscrew bolts (2) and remove left air vent (1) upward at an angle | ||
| 5 | Install in the reverse order |
