Remove/install light switch module - AR54.25-P-3270GW
MODEL 463 as of model year 2013/facelift 2012
| Remove/install | |||
| 1 | Switch off ignition | ||

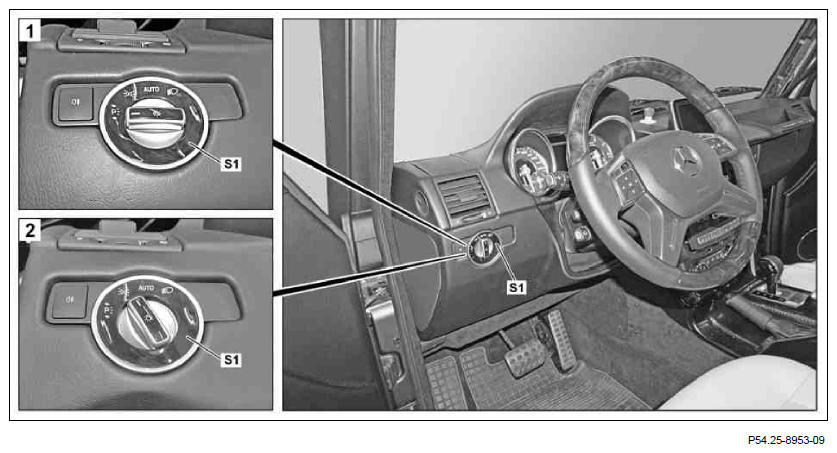

| 2 | Move exterior lights switch (S1) to position 1 parking lights (picture 1) | ||
| 3 | Press exterior lights switch (S1) and turn to position 2 standing light (picture 2) | ||
| 4 | Pull out exterior lights switch (S1) | ||
| 5 | Detach electrical connection from exterior lights switch (S1) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform function check of exterior lights switch (S1) | ||
| 8 | Read out and erase the fault memory using Star Diagnosis |
AD00.00-P-2000-04A |
