Remove/install headlamp unit - AR82.10-P-4730GW
MODEL 463 as of model year 2013/model refinement package 2012
| Remove/install | |||
| 1 | Remove headlamp trim | AR88.00-P-2100GW | |

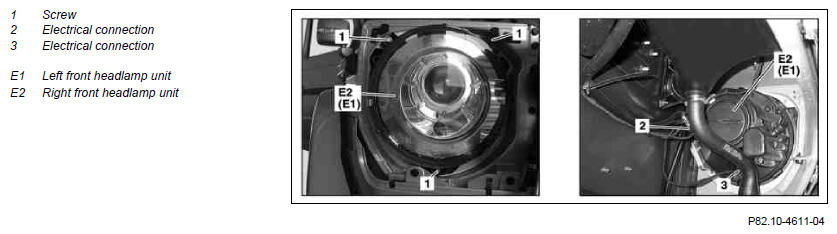

| 2 | Remove bolt (1) | ||
| 3 | Remove left front lamp unit (E1) or right front lamp unit (E2) | ||
| 4 | Disconnect electrical connector (2) | ||
| 5 | Disconnect electrical connector (3) | ||
| 6 | Install in the reverse order | ||
| 7 | Check headlamp adjustment and if necessary correct | AP82.10-P-8260-01GX |
