Remove/install headlamp cover - AR88.00-P-2100GW

MODEL 463 as of model year 2013/model refinement package 2012

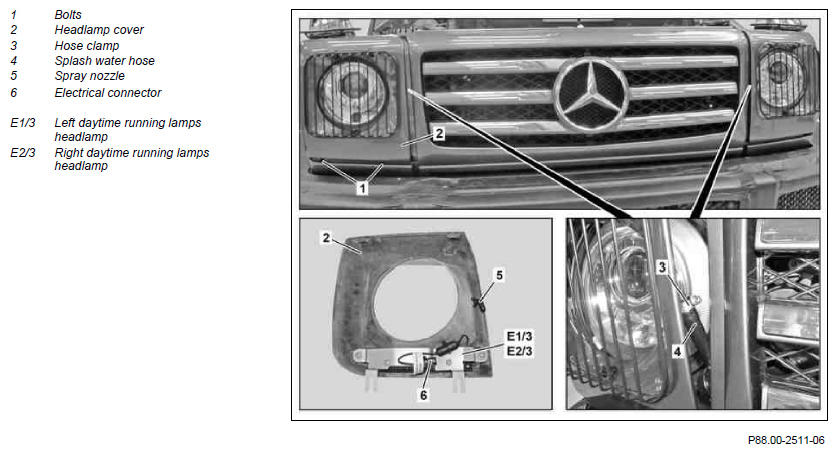

Fig 1: Headlamp Cover Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition
2	Loosen bolts (1)
3	Unclip headlamp trim (2) upward	Carefully push headlamp trim (2) upward out of both upper guides. Otherwise, there is the risk of breakage.
4	Loosen hose clamp (3)
5	Remove splash water hose (4) from headlamp cleaning system	Carefully remove spray water hose (4). Otherwise the connection pieces on the spray nozzle (5) can break.
6	Disconnect electrical connector (6)
7	Unscrew bolts from left daytime running lamp (E1/3) and right daytime running lamp (E2/3) and remove left daytime running lamp (E13) and right daytime running lamp (E2/3)	When replacing headlamp trim (2)
8	Install in the reverse order
9	Check headlamp cleaning system for proper function
