Remove/install antenna splitter - AR82.70-P-8953GW

MODEL 463 as of model year 2013/model refinement package 2012

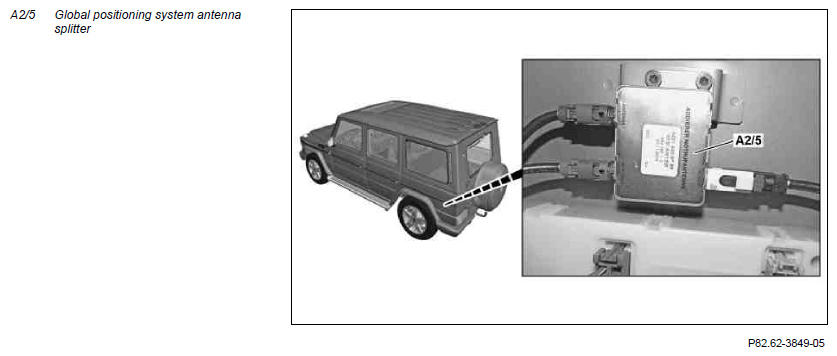

Fig 1: Antenna Splitter Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip rear fuse box from bracket and place to one side with connected lines	See "Remove rear control unit".	AR54.21-P-2009GW
2	Disconnect electrical connections from Global Positioning System antenna splitter (A2/5)
3	Unscrew screws/bolts and detach Global Positioning System antenna splitter (A2/5) from bracket	Total of 2 screws/bolts present.
4	Install in the reverse order
