Remove/install rear control unit - AR54.21-P-2009GW
MODEL 463 as of model year 2013/facelift 2012
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect STAR DIAGNOSIS and perform initial startup of rear control unit (N10/8) | When replacing rear control unit (N10/8) | AD00.00-P-2000-04A |
| 2 | Detach ground line from battery | AR54.10-P-0003GW | |
| Notes on battery | AH54.10-P-0001-01A | ||

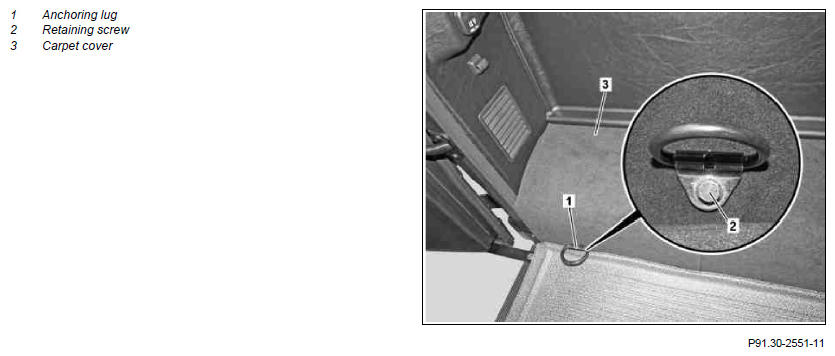

| 3 | Remove clamping bolt (2) from anchoring lug (1) | ||
| 4 | Remove carpet cover (3) and place to one side | ||
| 5 | Remove cover of fuse box | ||
| 6 | Remove TV tuner | Except model 463.202 | AR82.85-P-7366GW |

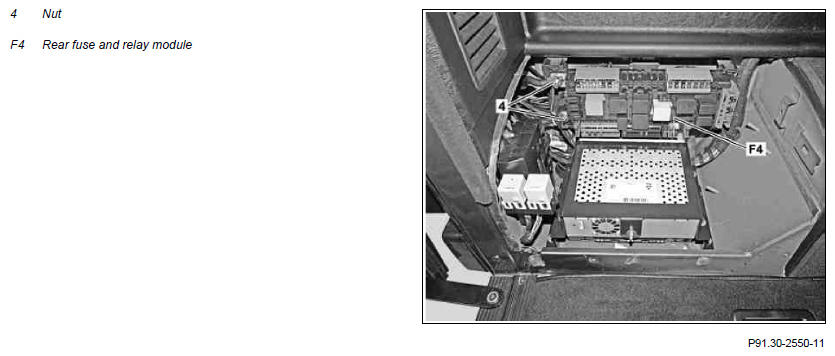

| 7 | Unclip rear fuse and relay module (F4) and place with connected lines to one side | ||

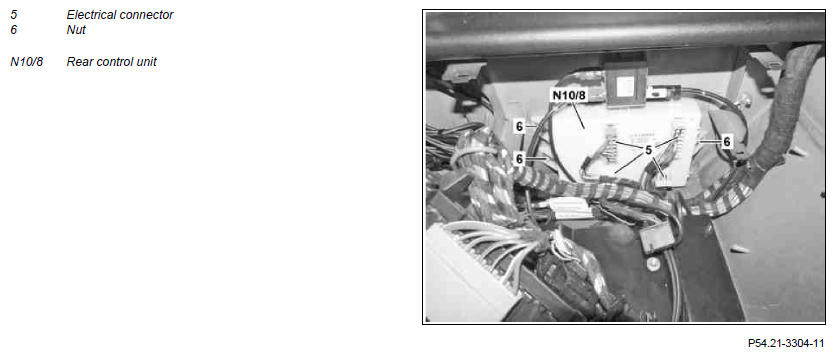

| 8 | Detach electrical connections (5) from rear control unit (N10/8) | ||
| 9 | Unscrew nuts (6) and remove rear control unit (N10/8) | ||
| 10 | Install in the reverse order |
