Disassemble/Assemble Front Suspension Strut - AR32.25-P-1018XG

Model 463 as of model year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension	Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves.	AS00.00-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove front suspension strut (1).		AR32.25-P-1017XG
	Disassemble

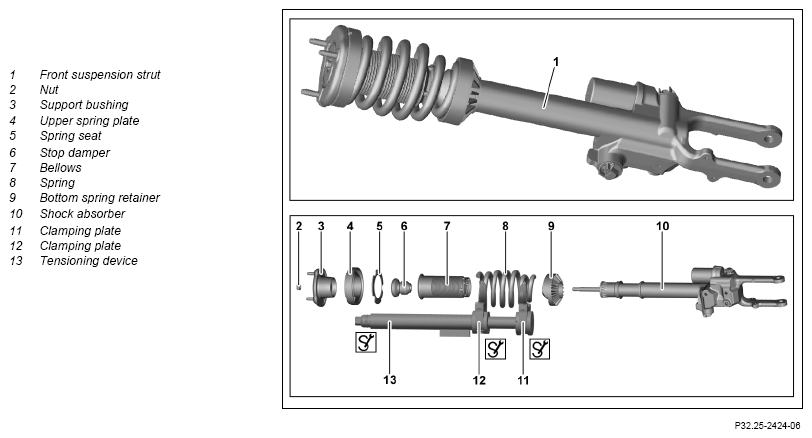

2	Tension tensioning device (13) in a vise and insert clamping plates (11, 12).	Clamping plates	Fig 1
		Tensioning device	Fig 3
3	Insert front suspension strut (1) with spring (8) into tensioning device (13).	Insert spring (8) between the clamping plates (11, 12) such that as many coils of the spring (8) tension.
4	By turning at the tensioning device (13), tension the spring (8) until the upper spring retainer (4) is relieved.
5	Unscrew nut (2) and counterhold piston rod while doing so.	Socket wrench	Fig 2
6	Remove support bushing (3), upper spring retainer (4) and spring seat (5).
7	Remove stop damper (6) and boot (7).
8	Remove shock absorber (10) and remove lower spring retainer (9).
9	By turning at the tensioning device (13), relax spring (8) and remove from the clamping plates (11, 12).
	Check
10	Check condition of upper spring retainer component parts (4), spring seat (5), stop damper (6), boot (7), spring (8) and lower spring retainer (9) and replace these if necessary.
11	Check shock absorber (10) for damage and oil fouling, and replace if necessary.		AR32.25-P-0121XG
	Assemble
12	Tension spring with tensioning device (13) and clamping plates (11, 12).	Clamping plates	Fig 1
		Tensioning device	Fig 3
13	Guide in and position shock absorber (10) with lower spring retainer (9).	Ensure that the coil of the spring (8) is correctly seated in the lower spring retainer (9).
14	Install boot (7) and stop damper (6).
15	Install support bushing (3) with upper spring retainer (4) and spring seat (5).	Ensure that the coil of the spring (8) is correctly seated in the upper spring retainer (4).
16	Screw on and tighten nut (2) on piston rod.	Nut, support bushing to shock absorber	*BA32.25-P-1006-04R
		Socket wrench	*164589001000
17	By turning at the tensioning device (13), relax spring (8) and clamping plates (11, 12).
18	Remove front suspension strut (1) from tensioning device.
19	Remove tensioning device (13) with clamping plates (11, 12).
	Install
20	Install front suspension strut (1).		AR32.25-P-1017XG
