Remove/Install Elastomer Bearing On Trailing Arm - AR35.15-P-0101GW

Model 463 (except 463.270/271)

as of model year 2013 up to model year 2019

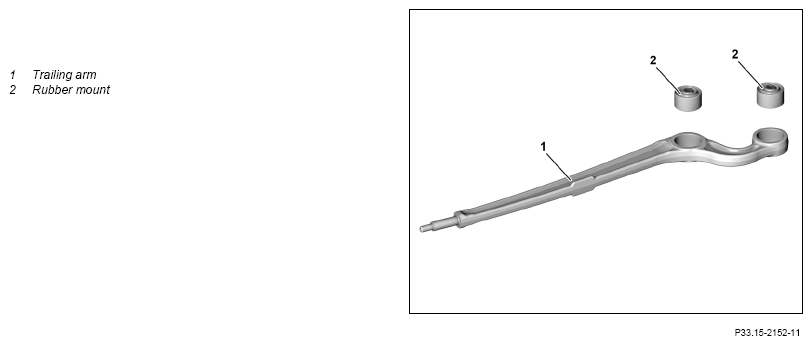

Fig 1: Trailing Arm Elastomer Bearing Components Location - Model 463 (except 463.270/271) Up To Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove trailing arm (1)	Remove/install trailing arm	AR35.20-P-0100GW
2	Press out decoupling element (2) using a press with a suitable die
	Install
3	Press in new decoupling element (2) using a suitable die	When pressing in the decoupling element (2), make sure that it protrudes evenly on both sides.
4	Install trailing arm (1)	Remove/install trailing arm	AR35.20-P-0100GW
