Disassemble/Assemble Rear Axle Shaft - AR35.30-P-7351GL
Model 461 with rear axle 741.171/52/53 with drum brakes on the rear axle
Model 463 with rear axle 741.52/53 up to model year 2019 with drum brakes on the rear axle

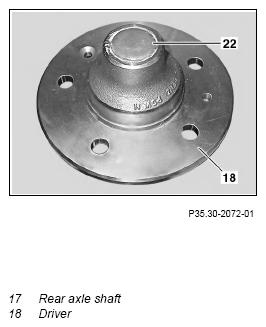

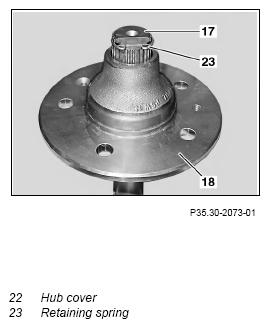

| Remove | |||
| 1 | Remove rear axle shaft (17) | AR35.30-P-0620GL | |
| Disassemble/assemble | |||
| 2 | Clamp rear axle shaft (17) before disassembling | ||
| 3 | Use a suitable tool to extract the hub cover (22) | ||
| Loctite 573 | *BR00.45-Z-1006-01A | ||
| 4 | Use a suitable tool to press together the securing spring (23) and slide back the transfer coupling (18) | ||
| 5 | Detach retaining spring (23) | ||
| 6 | Pull off the transfer coupling (18) | ||

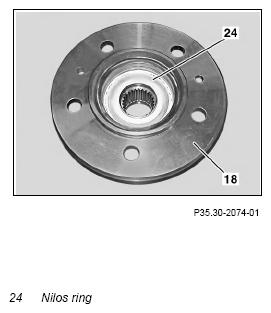

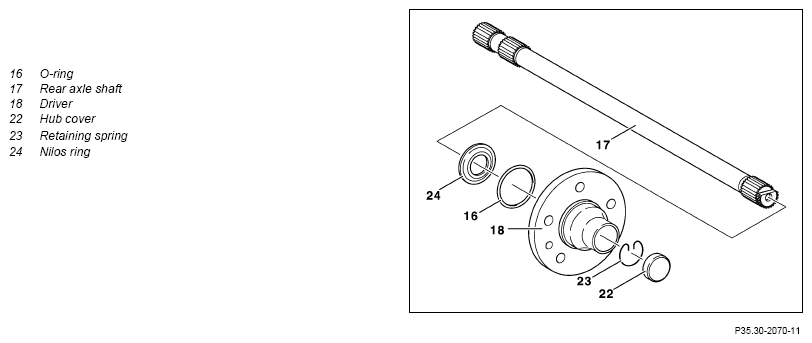

| 7 | Use a suitable tool to remove the Nilos ring (24) from the transfer coupling (18) | ||
| 8 | Assemble in the reverse order | ||
| Install | |||
| 9 | Install rear axle shaft (17). | AR35.30-P-0620GL | |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1006-01A | Loctite 573 | A 004 989 72 20 |
