Remove/Install Front Climate Control Operating Unit - AR83.30-P-6630XG

Model 463

as of model year 2019

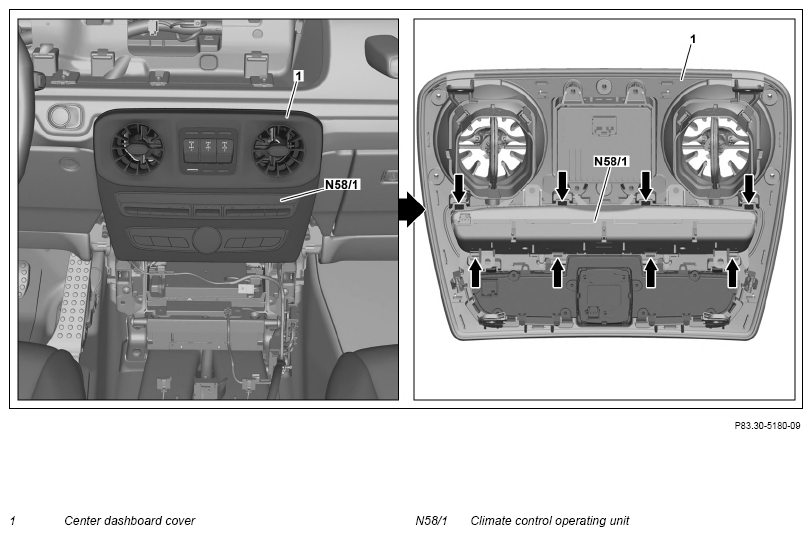

Fig 1: Front Climate Control Operating Unit Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove center instrument panel cover (1).		AR68.10-P-3430XG
2	Unclip air conditioning control panel (N58/1) at catch hooks (arrows) and remove.	Clip remover	Fig 2
3	Install in reverse order.

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
