Remove/Install Center Instrument Panel Cover - AR68.10-P-3430XG
Model 463
as of model year 2019
| Remove/install | |||
| 1 | Remove center console. | AR68.20-P-2000XG | |
| 2 | Remove the display module. | AR54.30-P-6023XG | |

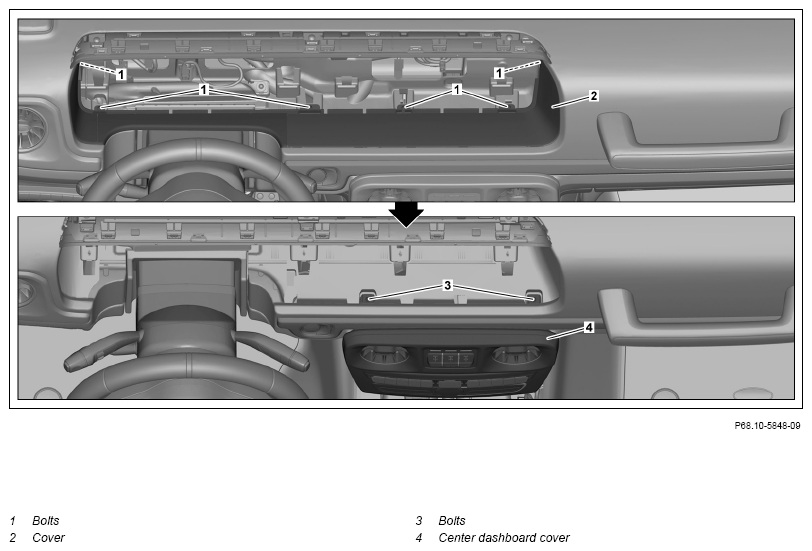

| 3 | Remove the screws (1). | ||
| 4 | Remove the cover (2). | ||
| 5 | Remove the screws (3). | ||
| 6 | Remove the screws (5). | ||
| 7 | Unclip the center instrument panel cover (4) and pull toward the rear until the electrical connectors are accessible. | ||
| 8 | Disconnect electrical connectors and remove center instrument panel cover (4). | ||

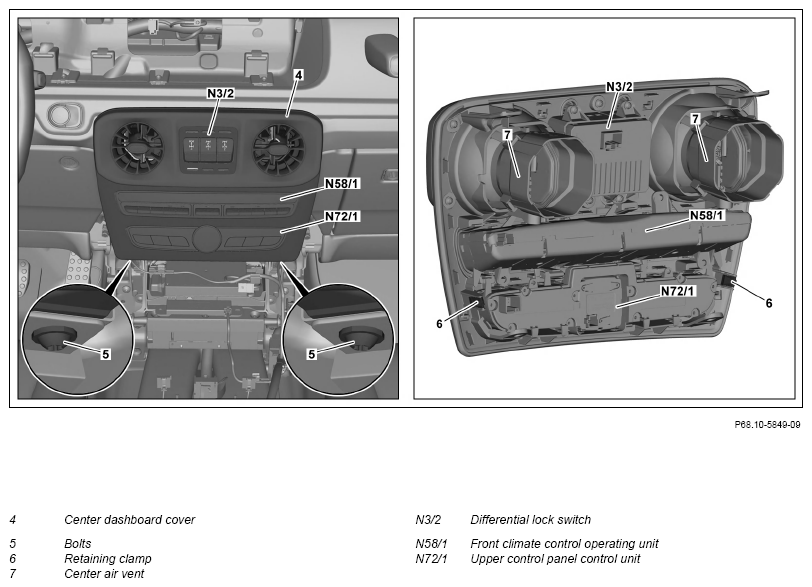

| 9 | Remove the center air vent (7). | When replacing the center instrument panel cover (4). | AR83.10-P-4503XG |
| 10 | Remove the differential lock switch (N3/2). | When replacing the center instrument panel cover (4). | AR54.25-P-1080XG |
| 11 | Remove the front climate control operating unit (N58/1). | When replacing the center instrument panel cover (4). | AR83.30-P-6630XG |
| 12 | Remove the upper control panel control unit (N72/1). | When replacing the center instrument panel cover (4). | AR54.21-P-1262XG |
| 13 | Install in reverse order. |
