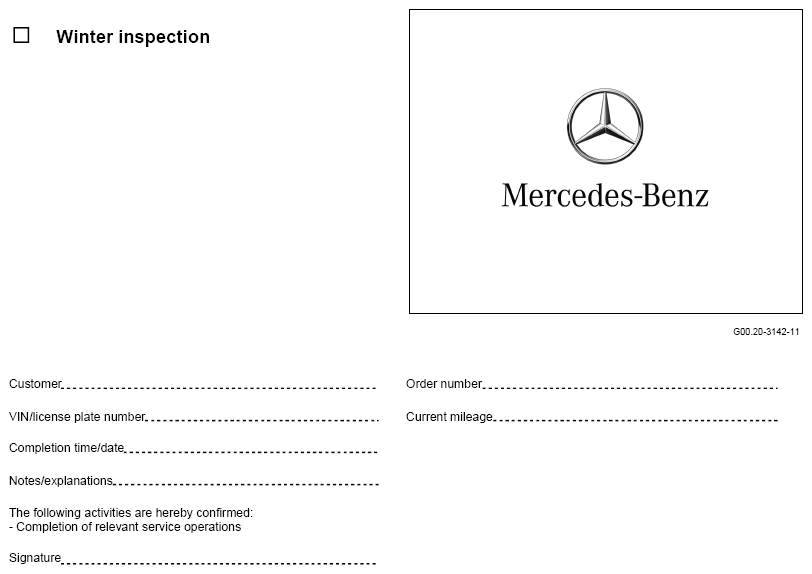

Winter Inspection - AP00.20-P-0082A

Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 463

Courtesy of MERCEDES-BENZ USA

W		Input condition not OK:	ⓧ
Completed
√
↓			↓
□	Brake system  Perform brake test and enter result in table.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293
		Model 463 up to Model year 2019		AP42.00-P-4290G
	Model 463 as of Model year 2019			AP42.00-P-4290BA
		Model 223		AP42.00-P-4290BS
□	Vehicle exterior  Check condition of vehicle exterior.		◦	AP60.00-P-6048U
□	Check condition of wiper blades.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463	◦	AP82.30-P-8253G
		Model 223		AP82.30-P-8253A
□	Check exterior lighting for proper operation.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463	◦	AP82.10-P-8252EW
		Model 223		AP82.10-P-8252A
□	Battery  Check condition of battery.	Batteries older than 24 months. The battery is located in the engine compartment, trunk or vehicle interior depending on the Model. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293 Model 463	◦	AP54.10-P-5449U
□	Vehicle interior  Check windshield wipers, windshield washer system and, if necessary, headlamp cleaning system for proper operation.		◦	AP82.30-P-8249U
□	Engine compartment  Check engine oil level.	Engine 111, 112, 113, 133, 139, 152, 156, 157, 159, 176, 177, 178, 256, 260, 264, 266, 270, 271, 272, 273, 274, 275, 276, 277, 278, 279, 282, 607, 608, 611, 612, 626, 628, 629, 640, 642, 646, 647, 648, 651, 654, 656	◦	AP18.00-P-1848U
□	Check main circuit coolant level in expansion reservoir.		◦	AP20.30-P-2049U
□	Check brake system fluid level.		◦	AP42.10-P-4247U
□	Windshield washer system: Check/correct fluid level.	When using cleaning compounds for summer/winter, and depending on the ambient temperature, observe the mixing ratio.		AP82.35-P-8249U
□	Underside of vehicle  Check condition of vehicle underside.		◦	AP60.00-P-6049U
□	Tires  Correct tire pressure and enter set tire pressure in table.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 up to Model year 2019	◦	AP40.15-P-4060G
		Model 463 as of Model year 2019		AP40.15-P-4061A
		Model 223		AP40.15-P-4061D
		Model 171, 203, 209, 211, 219		AP40.15-P-4061B
□	Trunk  Check/correct spare wheel tire pressure and enter set tire pressure in table.	Vehicle with spare wheel. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 up to Model year 2019	◦	AP40.15-P-4060G
		Model 463 as of Model year 2019		AP40.15-P-4061A
		Model 171, 203, 209, 211, 219		AP40.15-P-4061B
		Model 223		AP40.15-P-4061D
□	Check TIREFIT tire sealant.	Vehicle with TIREFIT. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 with code LQ0 (G650 Landaulet) Model 463 with code MUK2 (USA or Canada vehicle Model designation) Model 463 with code ZQ0 (G 500 4x42)		AP40.10-P-4054R
		Model 223 Enter expiration date here: Replace TIREFIT, invoice as additional operation.		AP40.10-P-4054A
