Check Outside Of Vehicle In Visible Area For Signs Of Damage - AP60.00-P-0050G

Model 461

Model 463

up to model year 2019

Shown on model 463.348

Courtesy of MERCEDES-BENZ USA

	Damage and stress caused to paintwork by external influences		see AH98.00-P-8070-02A .
	Check
1	Check vehicle body and detachable parts for damage and completeness	Dent/deformation, Component missing, Crack/scratch, Other damage. If complaint present ↓ Rectify the damage, subject to separate repair order, if necessary.

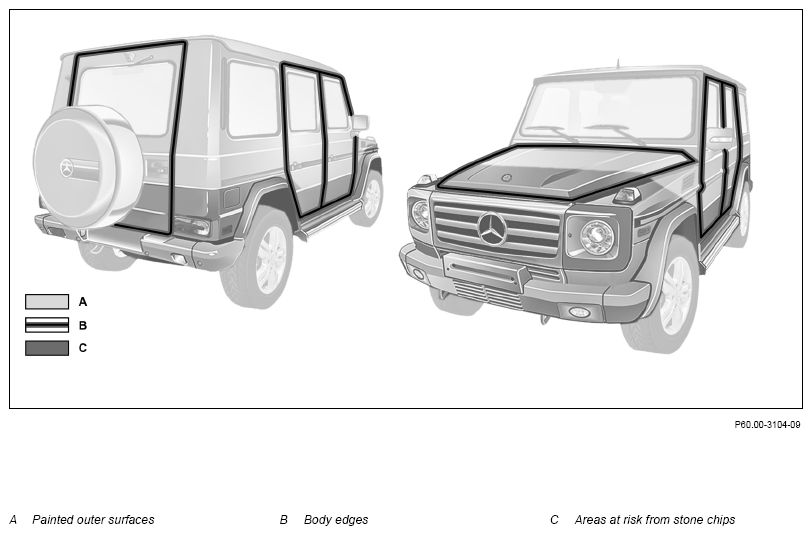

2	Check vehicle paintwork for damage and check vehicle body for corrosion	The main complaints are in the areas of the body edges (B) and areas (C) subject to stone chipping. Stone chipping, Scratch, Environmental influences, Paint peeling off. If complaint present ↓ Proceed in accordance with the country-specific regulations for mobility and body shell complaints subject to separate repair order.
			see OF98.00-P-3000-01A .
3	Check exterior lights glazing for damage	Water entry, Reflector dull, Component missing, corrosion, Crack/scratch, Other damage. If complaint present ↓ Rectify the damage, subject to separate repair order, if necessary.
