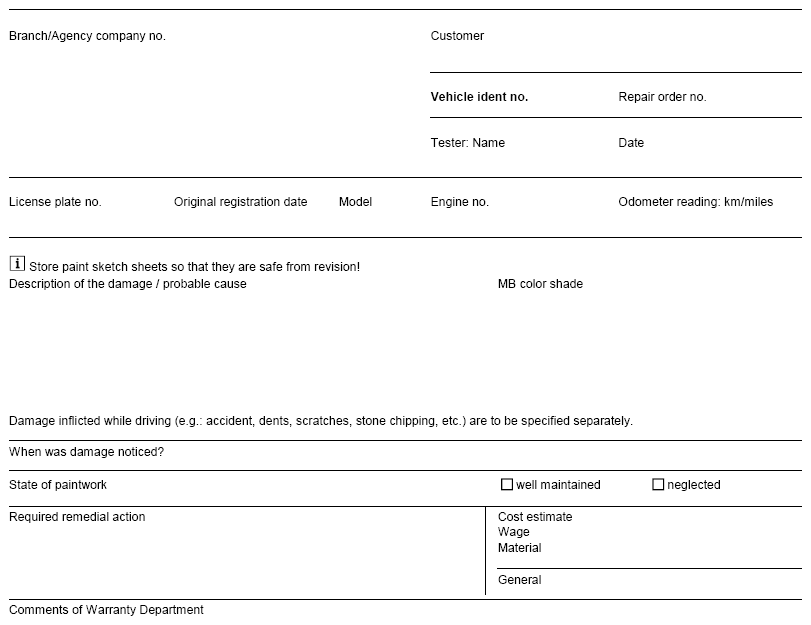

Sketch Form For Paint Damage - Of98.00-P-3000-01A
MODEL 460, 461, 462, 463

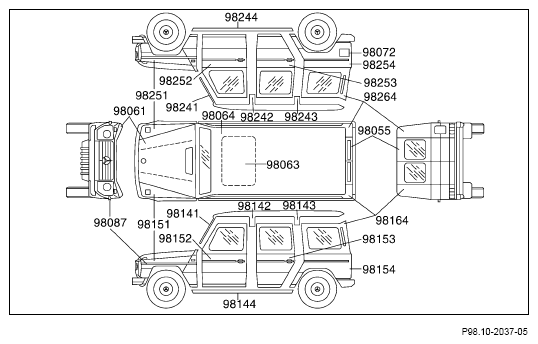

| Paint | Damaged part text | Corrosion |
|---|---|---|
| 98055 | Rear-end door/tailgate | 74001 |
| 98061 | Engine hood | 88201 |
| 98063 | Sliding roof | 78101 |
| 98064 | Roof | 65001 |
| 98066 | Paneling below rear window | |
| 98067 | Front paneling/spoiler | |
| 98072 | Fuel filler flap | 75101 |
| 98081 | Body, general | |
| 98084 | Engine compartment | |
| 98085 | Underfloor protection | |
| 98086 | Underfloor wax preservation | |
| 98087 | Trim/drip molding | |
| 98141 | Left A-pillar | 63B11 |
| 98142 | Left B-pillar | 63B21 |
| 98143 | Left C-pillar | 63B31 |
| 98144 | Left entry | |
| 98151 | Left front fender | 88A01 |
| 98152 | Left front door | 72A01 |
| 98153 | Left rear door | 73A01 |
| 98154 | Left rear fender | |
| 98164 | Left D-pillar | |
| 98241 | Right A-pillar | 63P11 |
| 98242 | Right B-pillar | 63P21 |
| 98243 | Right C-pillar | 63P31 |
| 98244 | Right door entry | |
| 98251 | Right front fender | 88N01 |
| 98252 | Right front door | 72N01 |
| 98253 | Right rear door | 73N01 |
| 98254 | Right rear fender | |
| 98264 | D-pillar, right | |
| 98310 | Engine compartment wax preservation | |
| 98314 | Luggage compartment | |
| 98385 | Step guard paint |

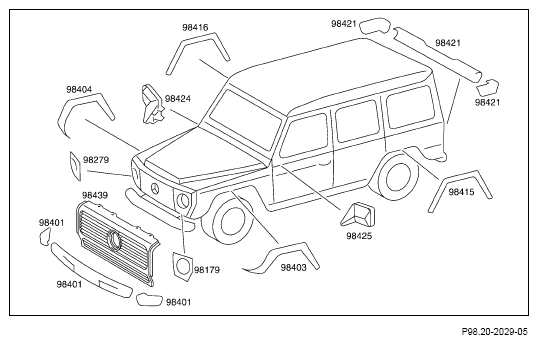

| Paint | Damaged part text | Corrosion |
|---|---|---|
| 98179 | Left headlamp paneling | |
| 98279 | Right headlamp paneling | |
| 98401 | Front bumper plastic covering | |
| 98403 | Left front wheel arch flare | |
| 98404 | Right front wheel arch flare | |
| 98415 | Left rear fender flare | |
| 98416 | Right rear fender flare | |
| 98421 | Plastic covering on rear bumper | |
| 98424 | Right outside mirror | |
| 98425 | Left outside mirror | |
| 98439 | Radiator grille |
| Paint | Damaged part text |
|---|---|
| K1 | Dust/dirt inclusion |
| K2 | Run |
| K3 | Color deviation |
| K4 | Cloudy |
| K6 | Fringe markings |
| K7 | Defects |
| K9 | Adhesion faults |
| LA | Abrasion |
| L1 | Masking tape traces |
| L2 | Cracks |
| L3 | Preservation residue |
| L4 | Overspray |
| L6 | Blisters |
| L7 | Pattern structure (orange peel) |
| L8 | Sanding marks |
| L9 | Polishing marks |
| Y4 | Separation of the outer and inner surfaces from the core |
| Y6 | Popping |
| Y7 | Craters |
| 47 | corroded/oxidized |
| DA | Rusted through |
| DC | Slight corrosion |
| DD | Severe corrosion |
