Remove/Install Fuse And Relay Box In Rear - AR54.15-P-1261GW
Model 463
as of Model year 2013 up to Model year 2019 /Facelift 2012

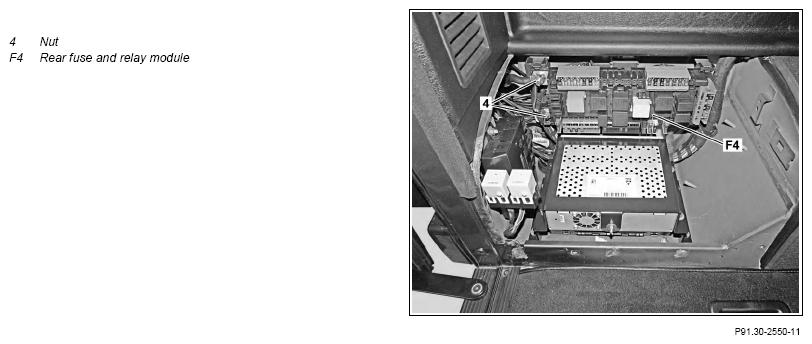

Fig 1: Rear Fuse And Relay Module Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019 /Facelift 2012
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Detach ground line from battery. | Model 463 (except 463.234/236/241/242/248) as of Model year 2013 up to Model year 2019 |
AR54.10-P-0003GW |
| 2 | Remove cover fro fuse box in load compartment. | Model 463 as of Model year 2013 up to Model year 2019 |
AR68.30-P-5410GW |
| 3 | Unscrew the nuts (4) of the electric lines on the rear fuse and relay module (F4). | ||
| 4 | Unclip rear fuse and relay module (F4). | ||
| 5 | Disconnect electric lines on rear fuse and relay module (F4). | ||
| 6 | Remove rear fuse and relay module (F4). | ||
| 7 | Install in reverse order. |
