Remove/Install Fuse Box Cover - AR68.30-P-5410GW
Model 463
as of model year 2013 up to model year 2019
| Remove/install | |||
| 1 | Open rear-end doors. | ||

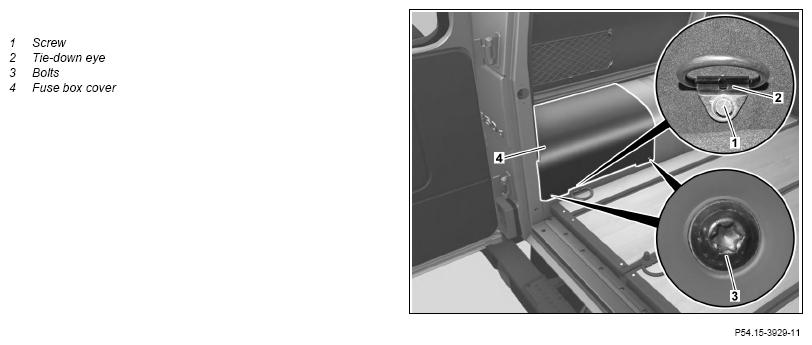

| 2 | Unscrew screw (1) and remove tie-down eye (2). | ||
| 3 | Lift carpet lining of fuse box cover (4) at lower edge until screws (3) can be accessed. | ||
| 4 | Unscrew screws (3). | ||
| 5 | Pull fuse box cover (4) towards load compartment and remove. | ||
| 6 | Install in reverse order. |
