Remove/Install Backup Camera - AR54.65-P-0030XG
Model 463
as of Model year 2019
with code FR8 (Rear view camera)
Model 463
as of Model year 2019
with code JS1 (360° camera (SURROUND VIEW))

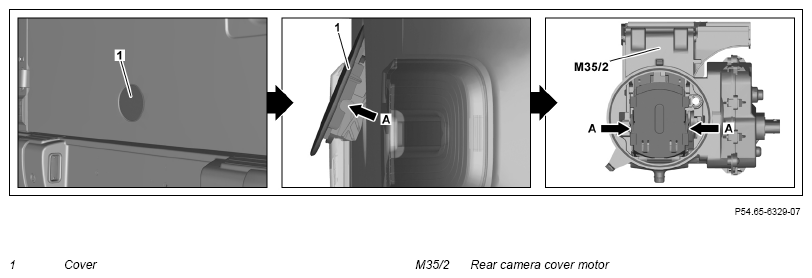

Fig 1: Backup Camera Components Location - Model 463 As Of Model Year 2019 With Code FR8 And Code JS1
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch on ignition, select "Open camera cover" item in "Reversing camera" or "360° camera" menu and confirm. | ||
| 2 | Release both catches (arrows A) on swivel drive of rear camera cover motor (M35/2) and detach cover (1). | ||
| 3 | Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). | ||

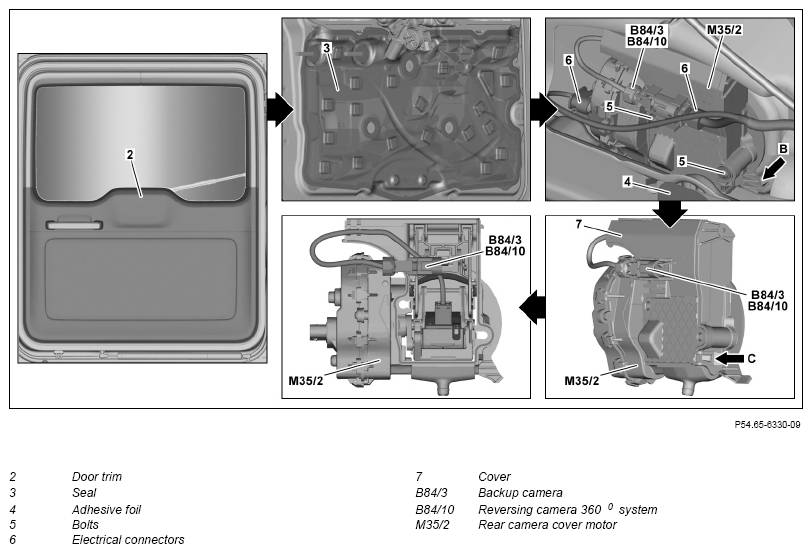

| 4 | Remove trim (2) from rear-end doors. | AR72.20-P-6615XG | |
| 5 | Detach sealing (3) in area of reversing camera (B84/3) or in area of 360° system reversing camera (B84/10) from rear-end door. | Carefully detach seal (3). Otherwise, the sealing (3) will be damaged. If sealing (3) is damaged, ↓ replace the sealing (3). |
|
| 6 | Remove adhesive film (4). | ||
| 7 | Unscrew the bolts (5). | ||
| 8 | Push back catch hooks (arrow B), remove rear camera cover motor (M35/2) and disconnect electrical connectors (6). | ||
| 9 | Open cap (7) (arrow C). | ||
| 10 | Remove reversing camera (B84/3) or 360° system reversing camera (B84/10) from rear camera cover motor (M35/2). | ||
| 11 | Install in reverse order. | ||
| Calibrate/initial startup | |||
| 12 | Commission reversing camera (B84/3) or 360° system reversing camera (B84/10). | When replacing reversing camera (B84/3) or 360° system reversing camera (B84/10). | |
| AD00.00-P-2000-04B | |||
| 13 | Calibrate 360° system reversing camera (B84/10). | ||
| AD00.00-P-2000-04B |
