Remove/Install D-Pillar Trim - AR68.30-P-4497XG
Model 463
as of model year 2019
Shown on left side of vehicle

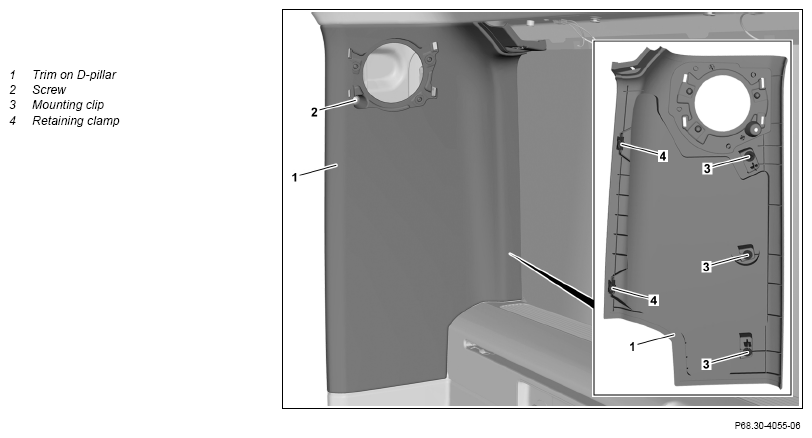

Fig 1: D-Pillar Trim Components Location - Model 463 As Of Model Year 2019 (Shown On Left Side Of Vehicle)
| Remove/install | |||
| 1 | Remove trim on C-pillar. | AR68.30-P-4490XG | |
| 2 | Remove trim on side roof frame. | AR68.30-P-4480XG | |
| 3 | Remove speaker on D-pillar. | Model 463 as of model year 2019 with code EU8 (Burmester® surround sound system) |
AR82.62-P-7860XG |
| 4 | Unscrew the bolt (2). | ||
| 5 | Unclip trim on D-pillar (1) from retaining clips (3) and retaining clamps (4) and remove. | If the retaining clamps (4) are damaged, ↓ Install new retaining clamps (4). |
|
| 6 | Install in reverse order. |
