Remove/install steering knuckle - AR33.25-P-0400CW

MODEL 172

MODEL 204 (except 204.077/277/377/9) without 4MATIC

MODEL 207 Without 4MATIC

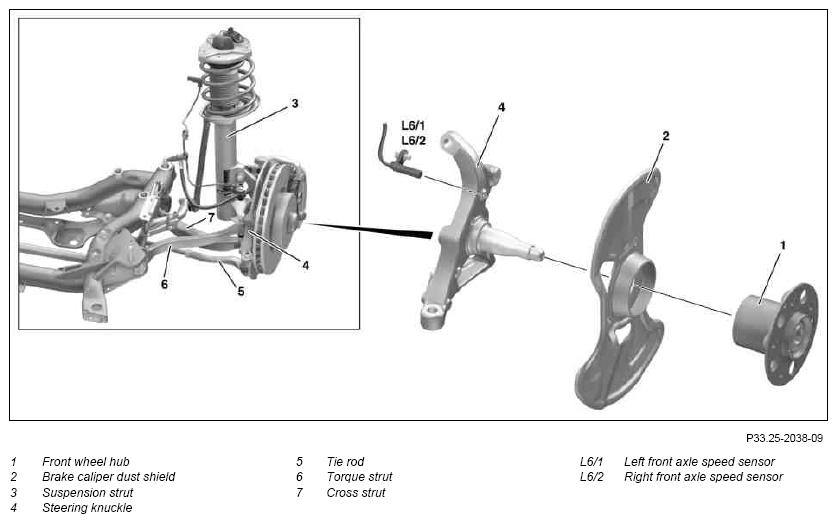

Fig 1: Identifying Steering Knuckle Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the of the parts will be reduced.
1	Remove left or right front wheel	Model 172	AP40.10-P-4050V
1	Remove left or right front wheel	Model 204, 207	AP40.10-P-4050CW
2	Remove front wheel hub (1)		AR33.20-P-0310CW
3	Remove brake cover plate (2)		*BA42.10-P-1005-10J
4	Remove suspension strut (3) from steering knuckle (4)		AR32.25-P-1017CW
5	Detach left front-axle RPM sensor (L6/1) or right left front-axle RPM sensor (L6/2) from steering knuckle (4)	Model 172, 204	AR42.30-P-0712CW
5		Model 207	AR42.30-P-0712EW
6	Detach tie rod (5) from steering knuckle (4)		AR46.40-P-0200-02CW
		Model 172	*BA46.40-P-1001-01E
		Model 204, 207	*BA46.40-P-1001-01N
		Press	Figure
		Thrust piece	Figure
		Puller (Model 172, 204 with tie rod joint without stainless steel race)	Figure
		Puller (Model 204, 207 with tie rod joint with stainless steel race)	Figure
7	Remove torque strut (6) from steering knuckle (4)		AR33.15-P-0160CW
8	Remove cross strut (7) from steering knuckle (4)		AR33.15-P-0161CW
9	Remove steering knuckle (4)
	Checking
10	Check rubber boot and supporting ball joint of cross strut (7) for damage	If necessary: ↓
10		Replace cross strut (7).	AR33.15-P-0161CW
11	Check rubber boot and ball joint of torque strut (6) for signs of damage	If necessary:
11		Radius rod (6) as indicated.	AR33.15-P-0160CW
12	Install in the reverse order	Tighten nuts and bolts of chassis components only when vehicle is in the ready-to-drive condition.

FRONT AXLE BRAKE CALIPER

Number	Designation		Model 172	Model 204 except model 204.077/277/377/9	Model 207
BA42.10-P-1005-10J	Self-locking bolt, cover panel to brake caliper support	Nm	14	14	14

TIE ROD

Number	Designation			Model 204	Model 207
BA46.40-P-1001-01N	Self-locking nut, tie rod to steering knuckle	Stage 1	Nm	50	50
BA46.40-P-1001-01N	Self-locking nut, tie rod to steering knuckle	Stage 2	∠°	60	60

TIE ROD

Number	Designation			Model 172
BA46.40-P-1001-01E	Self-locking nut, tie rod to steering knuckle	Stage 1	Nm	50
BA46.40-P-1001-01E	Self-locking nut, tie rod to steering knuckle	Stage 2	∠°	60

Fig 2: Identifying Press (163 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Puller (221 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Thrust Piece (171 589 00 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Puller (221 589 05 33 00)

Courtesy of MERCEDES-BENZ USA
